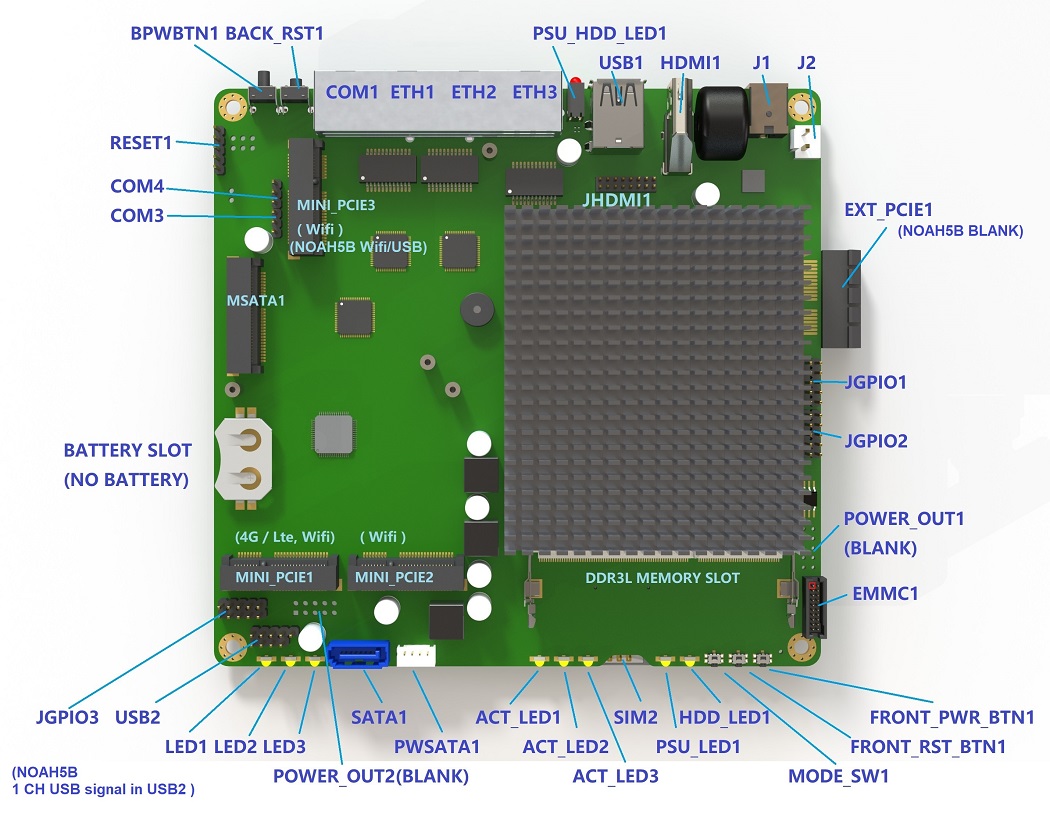

- 3 x WGI210AT

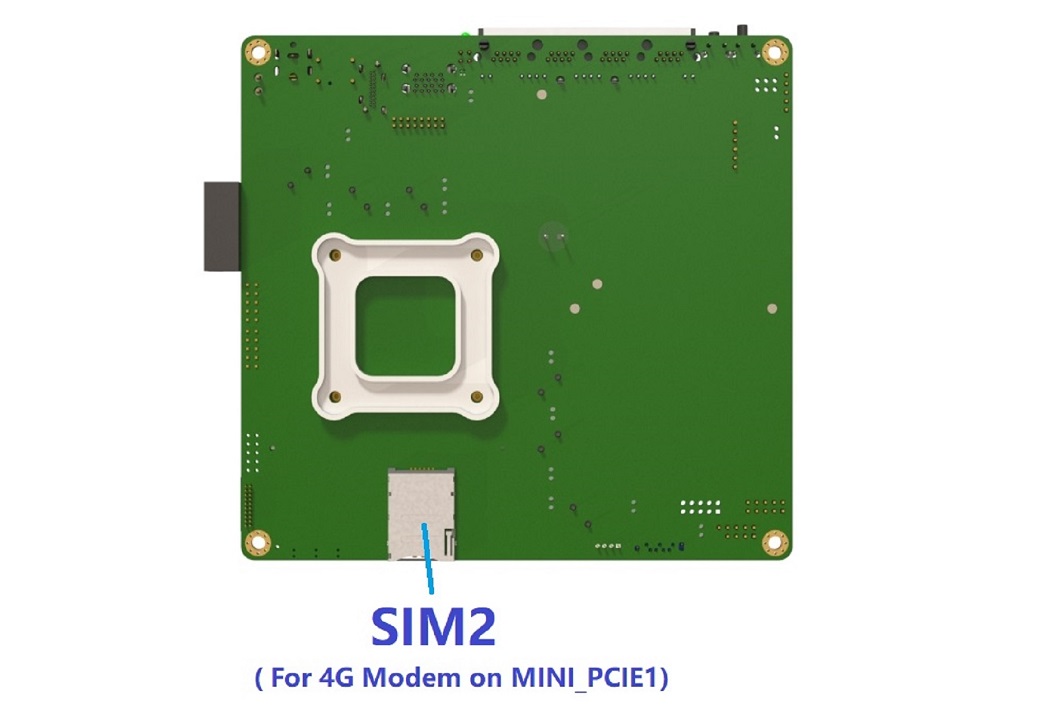

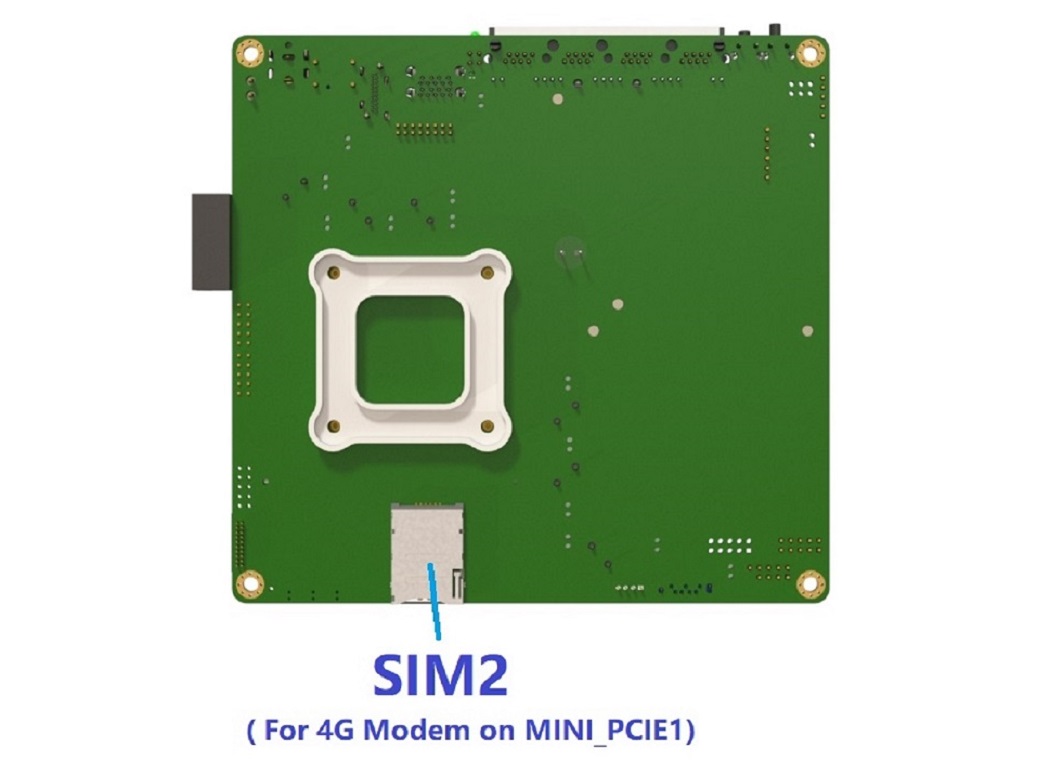

- Push-Push SIM Slot
- 4 x mPCIe Slot ( 1 4GLte/Wifi,1 Wifi/USB, 1 Wifi, 1 mSATA )
- 24 Channel GPIOs
- HDMI
- eMMC Header
- Low EMI emission
- CE/FCC certification
- USB 3.0
Details

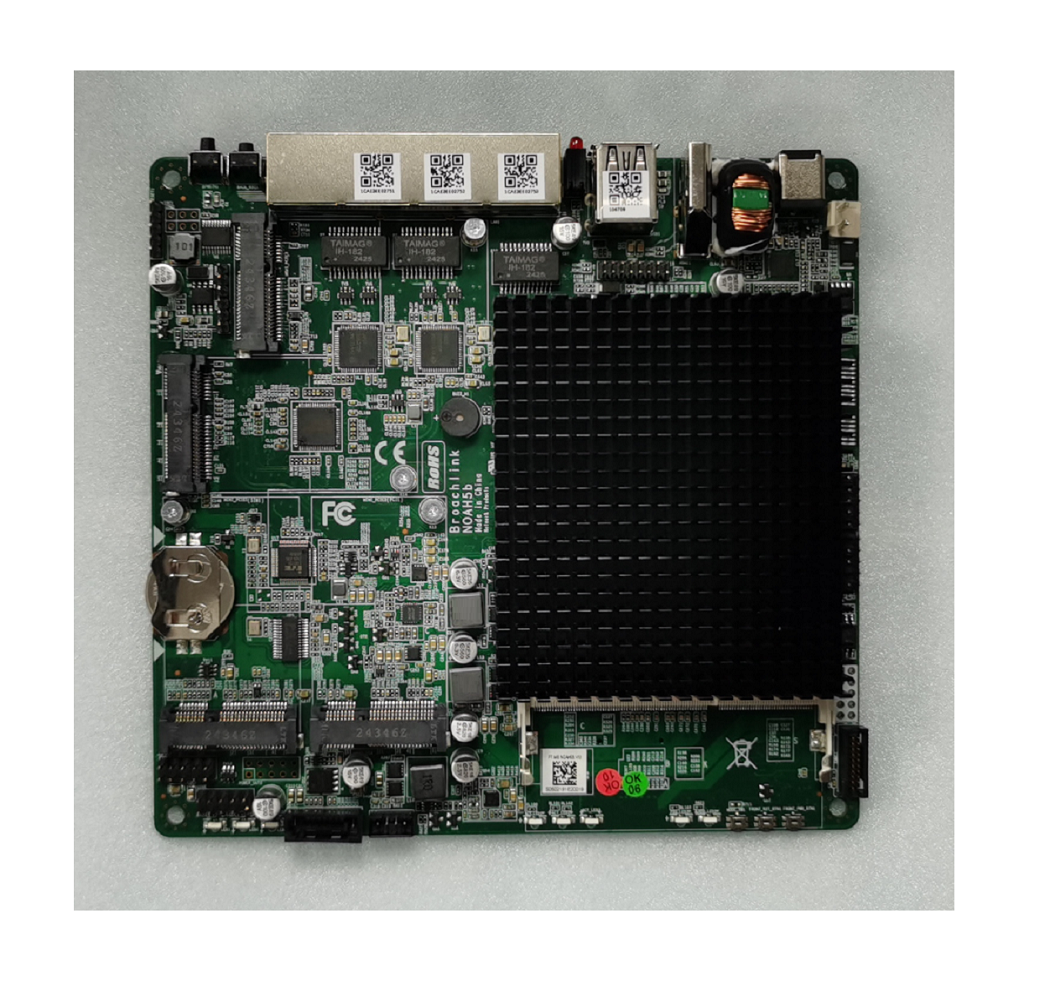

| noah5b | Router motherboard |
| Status | Active |
| Part numbers |
BL-NOAH5B BL-NOAH5B.TPM |
| Use with |
N1295 /
N1290 enclosures 4G DDR3L / 8G DDR3L Memory 16G / 32G / 64G / 128G mSATA SSD psu12veu2 / psu12vus2 / psu12vuk2 AC adapter psu12veu / psu12vus / psu12vuk AC adapter psu12vpcba embeded AC adpapter SIM7600G-H / ec25-eux mPCIe 4G module wle200nx / wle600vx / wle900vx miniPCI express wireless modules
usb2rj45
USB to RJ45 console cable |
| Specification |
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB). DRAM: SODIMM DDR3-1333 DRAM Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector. Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 4 Gigabit Ethernet channels (Intel i210AT ) I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, eight front panel LEDs, push button Expansion: 4 miniPCI express (1 4GLte/Wifi,1 Wifi/USB, 1 Wifi, 1 mSATA), GPIO header, I2C bus, COM3/4 (TXD / RXD / GND) Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah4 Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink |
| Documentation | Manual |
| Howto | How to program BIOS |
| Manufacturer | Broachlink |
| Origin | China |
