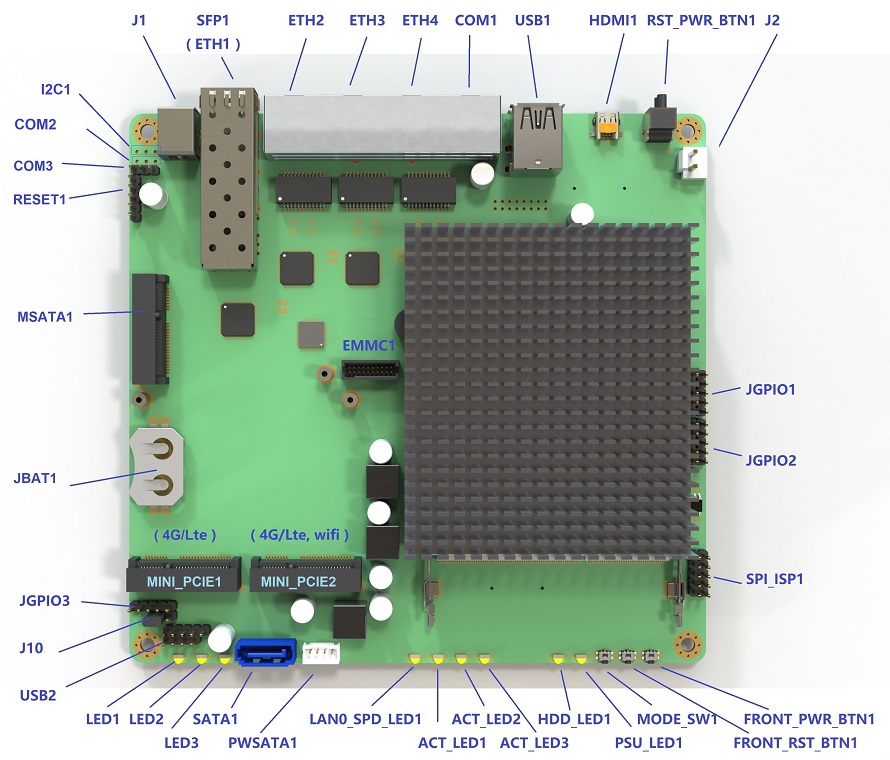

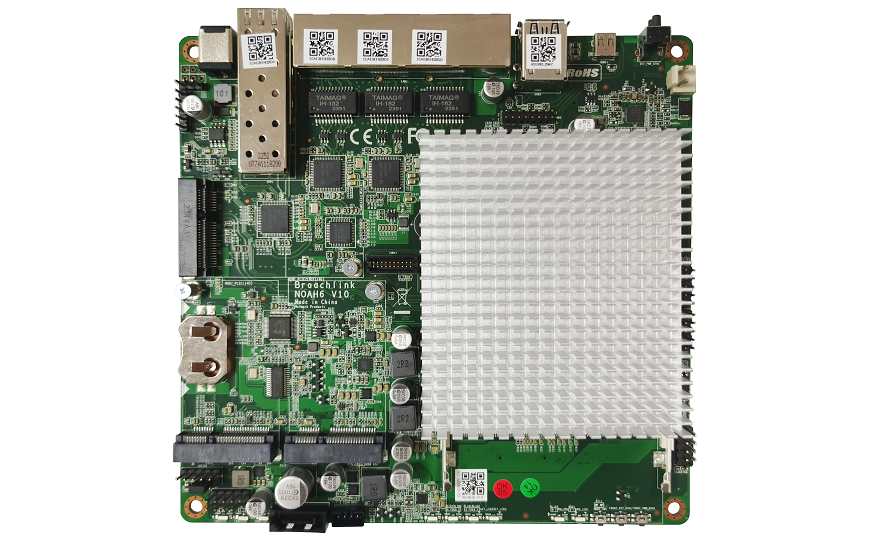

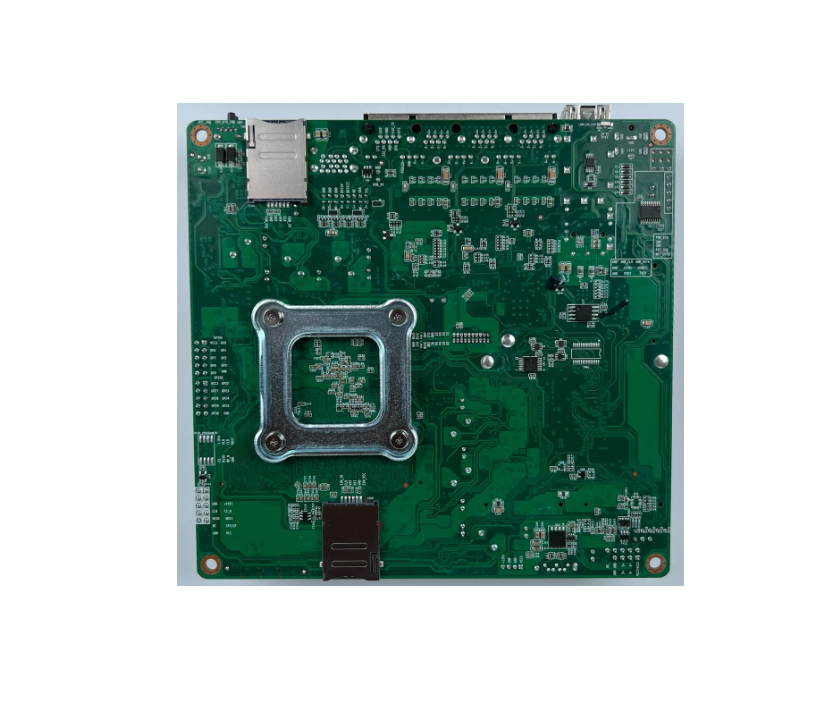

noah6 (4 NICs)
- 3 x WGI210AT
- 1 x WGI210AS

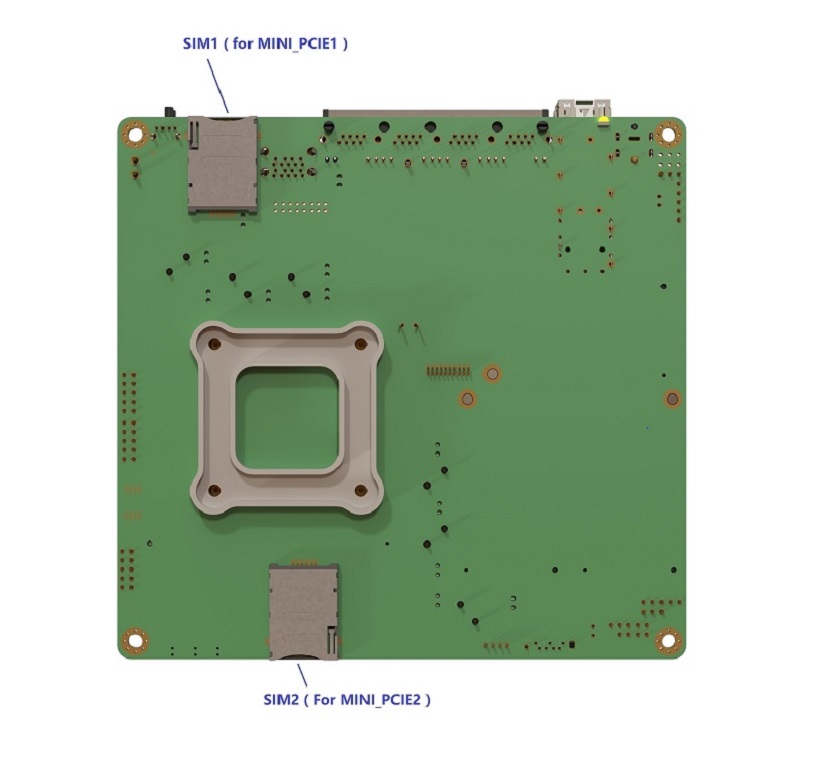

- Dual Push-Push SIM Slot
- 3 x mPCIe Slot ( 1 4G/Lte,1 4GLte/Wifi,1 mSATA )
- 20 Channel GPIOs
- Micro HDMI
- eMMC Header
- Upgrade EMC designing
- CE/FCC certification
- USB 3.0
Details
BL-NOAH
6
BL-NOAH6.TPM
16G /
32G /
64G /
128G mSATA SSD
psu12veu2
/
psu12vus2
/
psu12vuk2
AC adapter
psu12veu /
psu12vus /
psu12vuk AC adapter
psu12vpcba
embeded AC adpapter
SIM7600G-H /
ec25-eux
mPCIe 4G module
wle200nx
/
wle600vx
/
wle900vx
miniPCI express wireless modules
usb2rj45
USB to RJ45 console cablenoah6
Router motherboard
Status
Active
Part numbers
Use with
N1297 enclosures
4G DDR3L /
8G DDR3L Memory
Specification
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB)
DRAM: SODIMM DDR3-1333 DRAM
Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector.
Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive
Connectivity:
1 SFP port (Gigabit,Intel i210AS),3 Gigabit Ethernet channels (Intel i210AT)
I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, nine front panel LEDs, push button
Expansion: 3 miniPCI express (1 4G/Lte, 1 4Glte/Wifi, 1 mSATA), GPIO header, I2C bus, COM3/4 (TXD / RXD / GND)
Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah4
Firmware: AMI
Cooling: 77 x 88 mm aluminum heatsink
Documentation
Manual
Howto
How to program BIOS
Manufacturer
Broachlink
Origin
China
