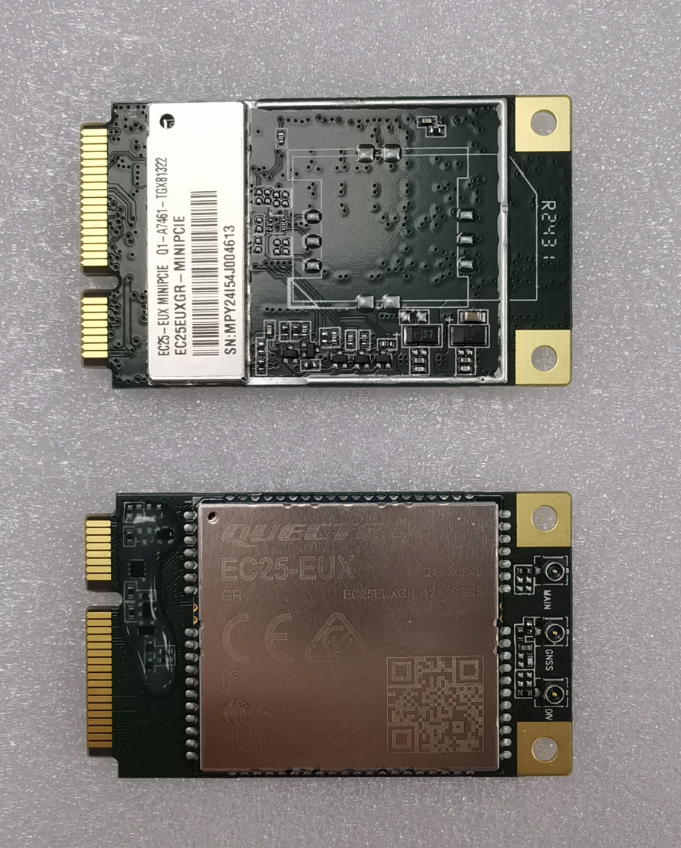

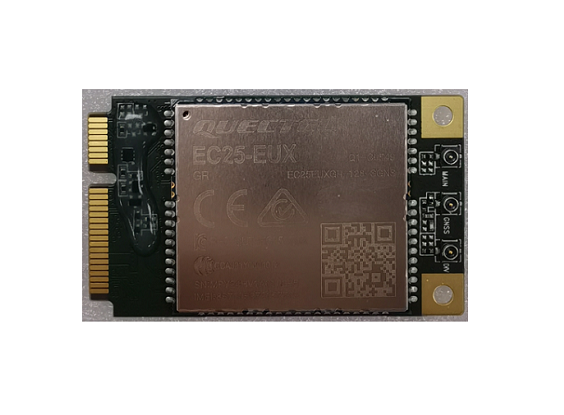

ec25-eu / ec25-eux (4G)

ec25-eu = SIMcom miniPCI express 4G, I-Pex 1 connectors (Europe: Deutsche Telekom/British Telecom)

ec25-eux = SIMcom miniPCI express 4G, I-Pex 1 connectors (Europe: Deutsche Telekom)

LTE Cat 4 module optimized for broadband IoT applications

Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for
manufacturers to easily integrate wireless connectivity into their devices
MIMO technology meets demands for data rate and link
reliability in modem wireless communication systems

Multi-constellation GNSS receiver (optional) available for applications requiring fast and accurate fixes in any environment

51.0 mm × 30.0 mm × 4.9 mm

Extended temperature range of -40 °C to +80°C

Transfer speed:

      LTE-FDD: 150Mbps(DL)/50Mbps(UL)

      LTE-TDD: 130Mbps(DL)/30Mbps(UL)

      HSPA+:42 Mbps(DL)/5.76Mbps(UL)

      WCDMA:384 Mbps(DL)/384Mbps(UL)

      EDGE:296K bps(DL)/236Mbps(UL)

      GPRS:107K bps(DL)/85Mbps(UL)

EC25 Series Mini PCIe Hardware Design guide

Datasheet

GCF/CE/UKCA/KC/NCC/RCM/NBTC/ICASA/FCC/PTCRB/IC/Anatel/JATE/TELEC
Carrier: Vodafone/Deutsche Telekom/British Telecom/Orange/Telefónica/KT/SKT/LGU+/
Verizon/AT&T/T-Mobile/Rogers/Telus/U.S. Cellular/ Telstra/NTT DOCOMO/So· Bank/KDDI/Bell*/Spark;
