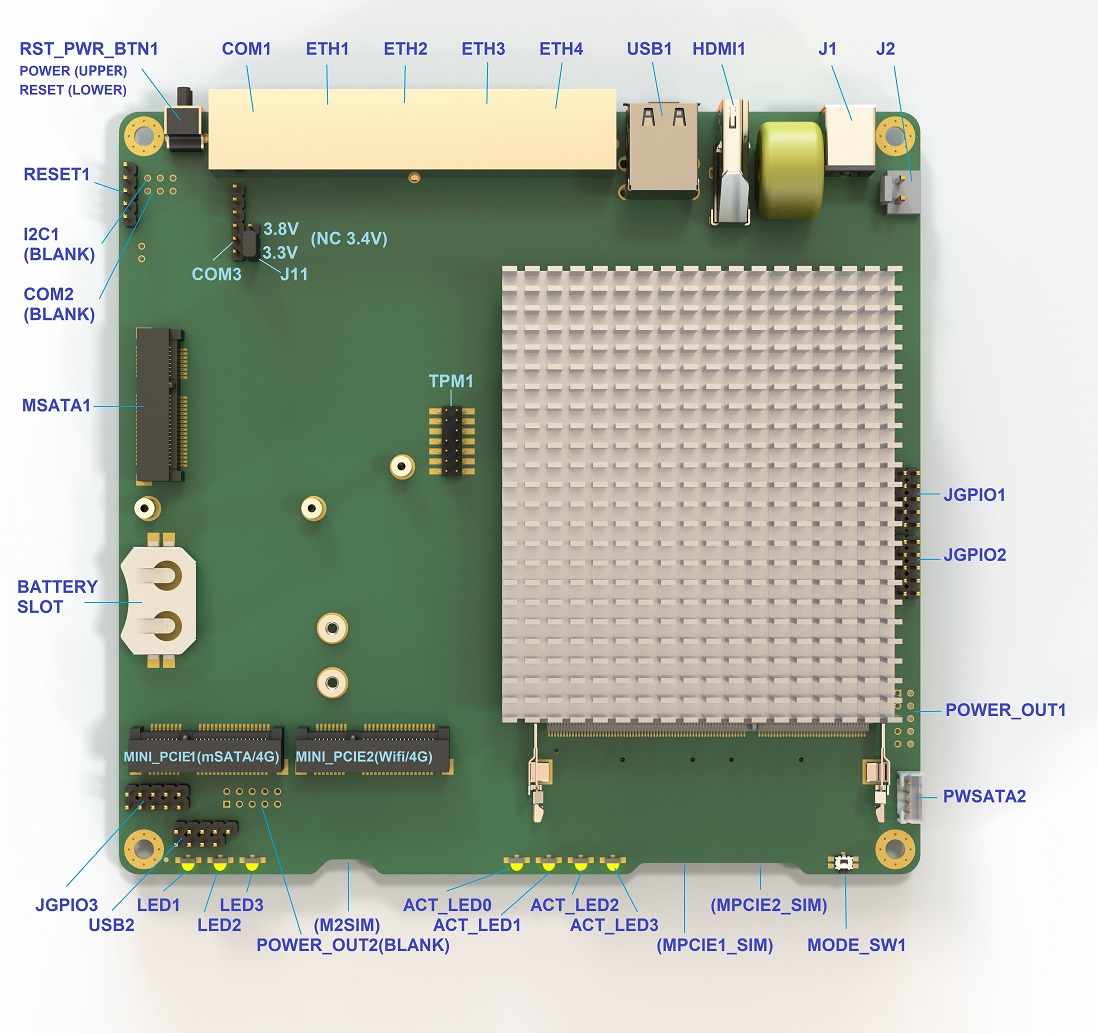

noah4c
- 4 x WGI210AT
- 3 x SIM Slot
- Soft RAID capability
- TPM header
- 3 x mPCIe Slot ( 1 mSATA/4GLte,1 Wifi/4GLte,1 mSATA )
- 1 x M.2 B-key for 4G/5G Modem
- 23 Channel GPIOs
- HDMI
- Low EMI emission
- CE/FCC certification
Details
| noah4c | Router motherboard |
| Status | Active |
| Part numbers | BL-NOAH4C |
| Use with |
N1296-V30 / N1296 / N1290-NOAH4C-V30 / n806 enclosures 4G DDR3L / 8G DDR3L Memory 16G / 32G / 64G / 128G mSATA SSD psu12veu2 / psu12vus2 / psu12vuk2 AC adapter psu12veu / psu12vus / psu12vuk AC adapter psu12vpcba embeded AC adpapter SIM7600G-H / ec25-eux mPCIe 4G module RM520N-GL / sim8202g-m2 M.2 5G module wle200nx / wle600vx / wle900vx miniPCI express wireless modules BL-TPM-A-LPC2 / BL-TPM-A-LPC5 TPM module usb2rj45 USB to RJ45 console cable |
| Specification |
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB) DRAM: SODIMM DDR3-1333 DRAM Storage: Boot from m-SATA SSD, internal USB (USB-DOM), or external USB. Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 4 Gigabit Ethernet channels (Intel i210AT ) I/O: RJ45 serial port, 2 USB 2.0 external + 1 USB 2.0 internal, seven front panel LEDs,GPI push button Expansion: 3 miniPCI express (1 mSATA/4GLte,1 Wifi/4GLte,1 mSATA ),1 M.2 for 4G/5G, GPIO header, I2C bus, COM3 (txd / rxd / gnd) Board size: 6.3 x 6" (160 x 152.4 mm) Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink |
| Documentation | Manual |
| Howto | How to program BIOS |
| Manufacturer | Broachlink |
| Origin | China |
| Contact ： | Richard |
|---|---|
| Phone ： | +86 13480930459 |
| Email ： | broachlink@gmail.com |
| Skype ： | dengliefeng |
| Wechat ： | 13480930459 |
| Address ： | C1002,Bao'an Plaza,Sungang E. Rd., Luohu Dist., Shenzhen, China |
