noah3b
- 3 x WGI210AT
- 3 x SIM Slot
- Soft RAID capability
- TPM header
- 3 x mPCIe Slot ( 1 mSATA/4GLte,1 Wifi/4GLte,1 mSATA/USB )
- 1 x M.2 B-key for 4G/ 5G Modem
- 24 Channel GPIOs
- HDMI
- Low EMI emission
- CE/FCC certification
Details
|

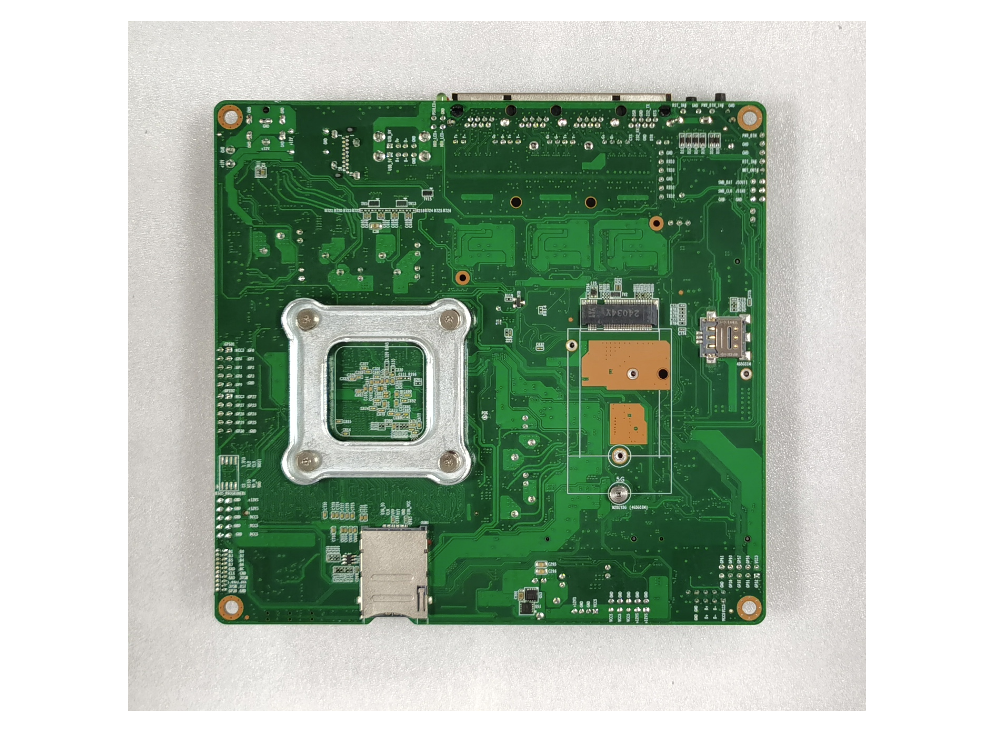

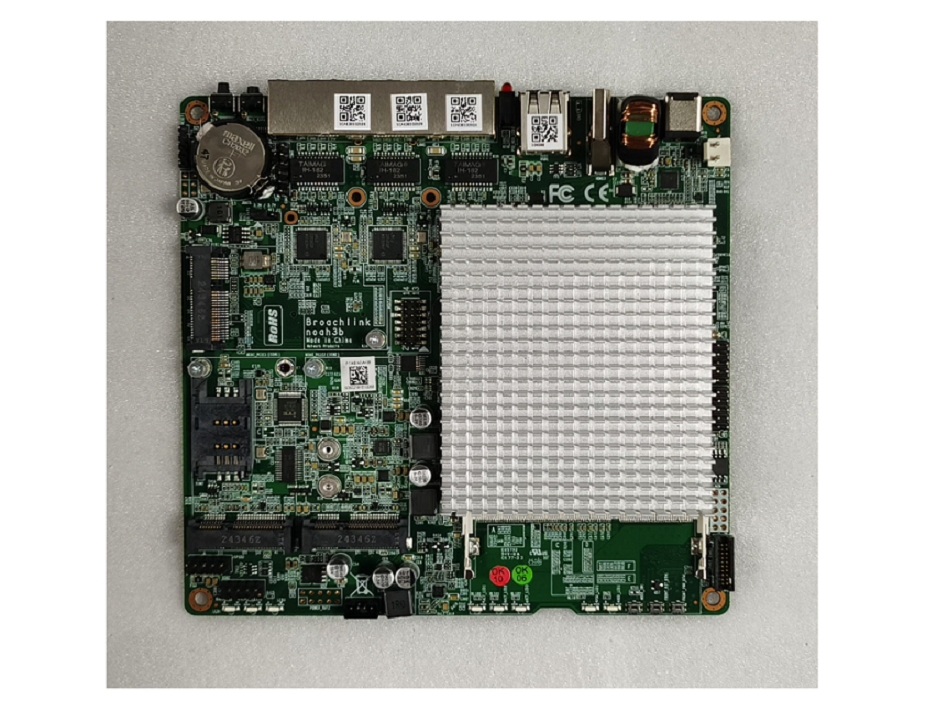

noah3b
|
Router motherboard
|
|
Status
|
Active
|
|
Part numbers
|
BL-NOAH3B
|
|
Use with
|
N1295 /
N1290 enclosures 4G DDR3L / 8G DDR3L Memory 16G / 32G / 64G / 128G mSATA SSD psu12veu2 / psu12vus2 / psu12vuk2 AC adapter
psu12veu
/
psu12vus
/
psu12vuk
AC adapter
psu12vpcba
embeded AC adpapter SIM7600G-H / ec25-eux mPCIe 4G module
RM520N-GL
/
sim8202g-m2 M.2 5G module wle200nx / wle600vx / wle900vx miniPCI express wireless modules BL-TPM-A-LPC2 / BL-TPM-A-LPC5 TPM module
usb2rj45
USB to RJ45 console cable |
|
Specification
|
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB)
DRAM: SODIMM DDR3-1333 DRAM Storage: Boot from m-SATA SSD, internal USB (USB-DOM), or external USB. Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 3 Gigabit Ethernet channels (Intel i210AT ) I/O: RJ45 serial port, 2 USB 2.0 external + 2 USB 2.0 internal, eight front panel LEDs, push button Expansion: 3 miniPCI express (1 mSATA/4GLte,1 Wifi/4GLte,1 mSATA/USB ),1 M.2 for 4G/5G, GPIO header, I2C bus, COM3/4 (TXD / RXD / GND) Board size : 6.3 x 6" (160 x 152.4 mm) Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink |
|
Documentation
|
|
|
Howto
|
How to program BIOS
|
|
