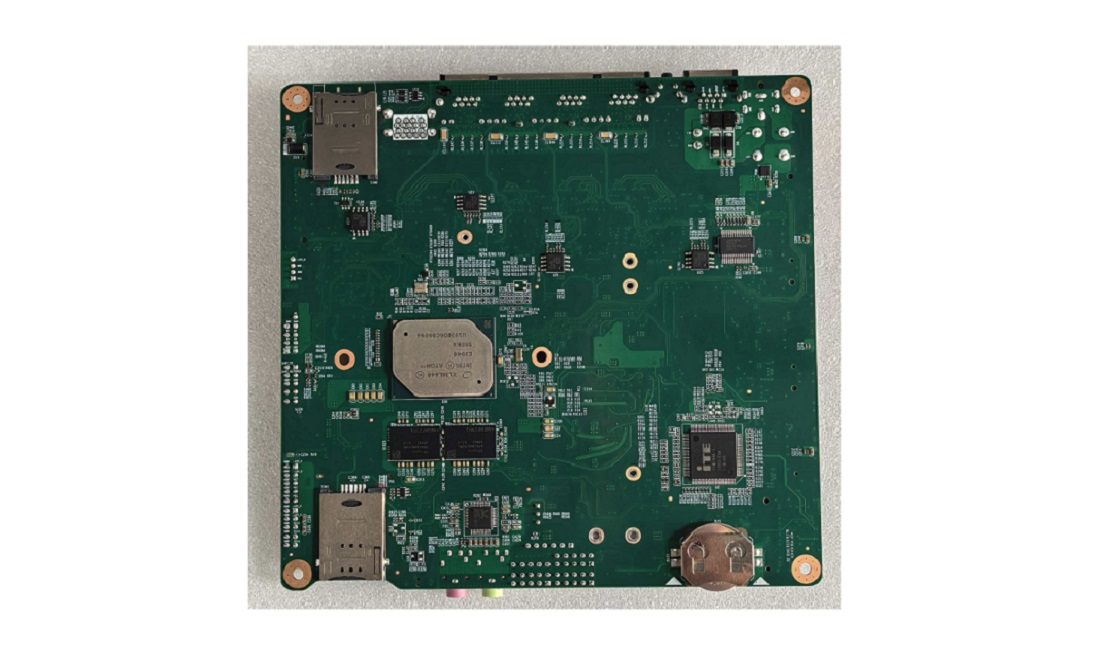

aplx1.4b8

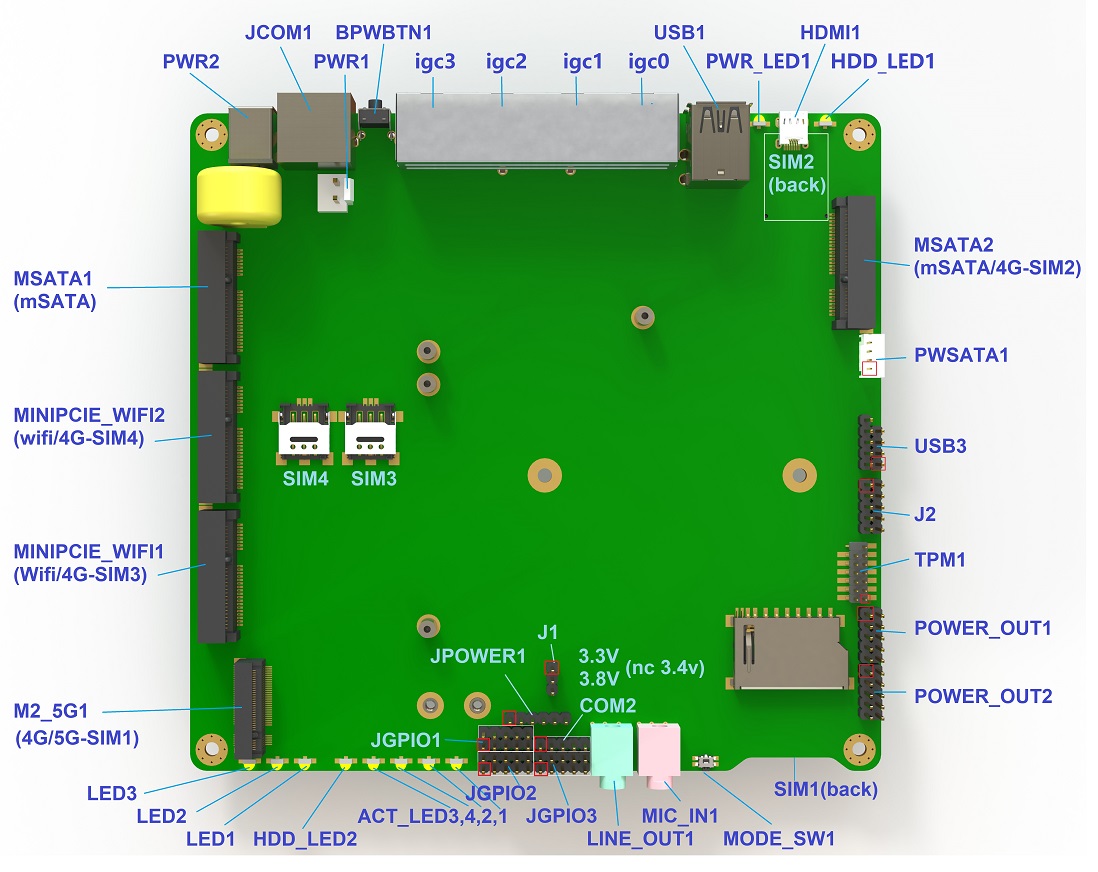

- DDR4 8GB onboard
- 4 x I226-V 2.5g Ethernet
- Audio ( aplx1.4b8 )
- Micro-HDMI

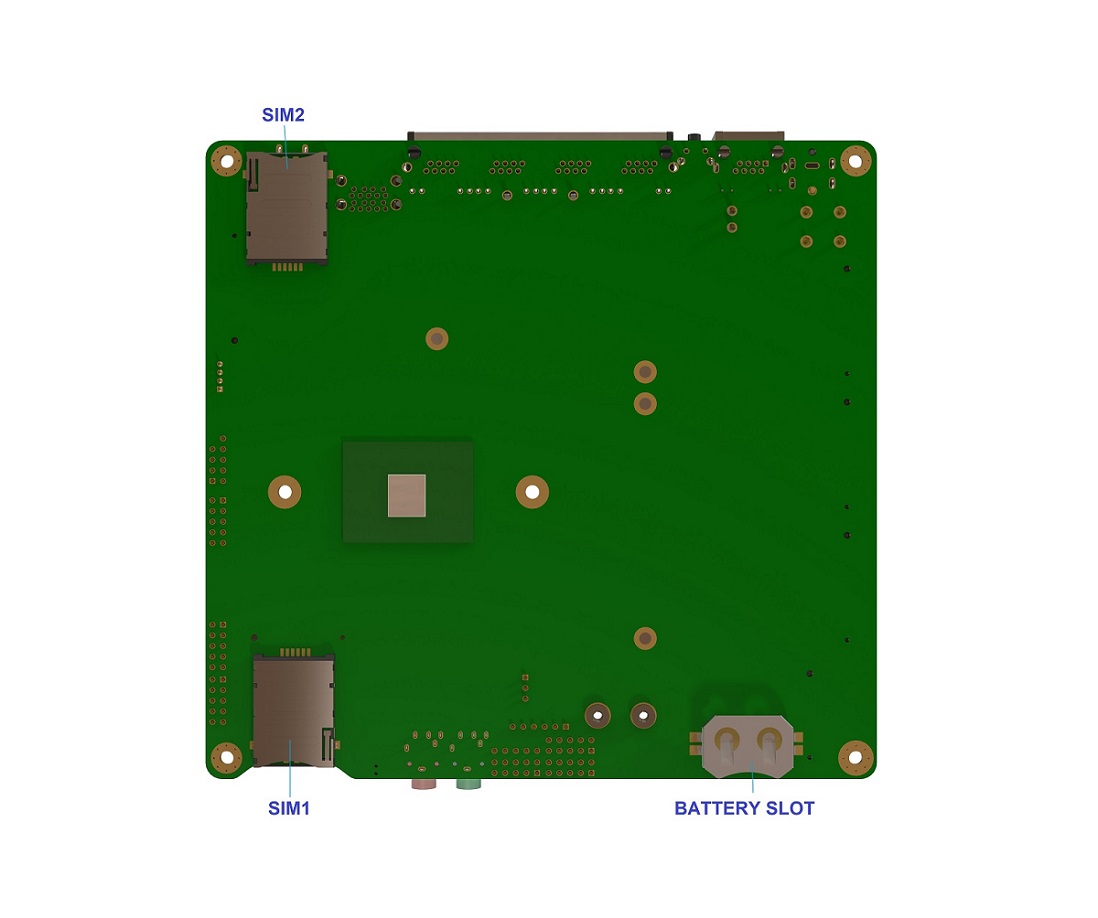

- Dual Push-Push SIM Slot,2 onboard Nano-SIM slot
- 4 x mPCIe Slot ( 2 wifi/4G-Lte,1 mSATA,1 mSATA/4G-Lte )
-
1 x M.2 B-key for 4G/5G Modem
- 24 Channel GPIOs
- TPM header
- Low EMI emission
- CE/FCC certification
Details
| aplx1.4b | Router motherboard |
| Status | Active |
| Part numbers |
aplx1.4b8 = 4 I226-v LAN / Intel E3940 / 8GB DDR4 onboard / Quad SIM / Audio aplx1.4a4 = 4 I226-v LAN / Intel E3940 / 4GB DDR4 onboard / Quad SIM |
| Use with |
n808.aplx1 enclosures 16G / 32G / 64G / 128G mSATA SSD psu12veu2 / psu12vus2 / psu12vuk2 AC adapter psu12veu / psu12vus / psu12vuk AC adapter psu12vpcba embeded AC adpapter SIM7600G-H / ec25-eux mPCIe 4G module RM520N-GL / sim8202g-m2 M.2 5G module wle200nx / wle600vx / wle900vx miniPCI express wireless modules BL-TPM-A-SPI TPM module usb2rj45 USB to RJ45 console cable |
| Specification |
CPU: Intel Embedded Atom series E3940, 1.8 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 1MB 16-way L2 cache per two core (Total 2MB) DRAM: Onboard DDR4 memory Storage: Boot from m-SATA SSD, internal USB (USB-DOM), or external USB. Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 4 I226-V Ethernet channels I/O: RJ45 serial port, 2 USB 2.0 external + 1 USB 2.0 internal, eight front panel LEDs,GPI push button Expansion: 4 miniPCI express (1 mSATA/4GLte,2 Wifi/4GLte,1 mSATA ),1 M.2 for 4G/5G, GPIO header, I2C bus, COM3 (txd / rxd / gnd) Board size: 6.3 x 6" (160 x 152.4 mm) Firmware: AMI |
| Documentation | Manual |
| Howto | How to program BIOS |
| Manufacturer | Broachlink |
| Origin | China |
