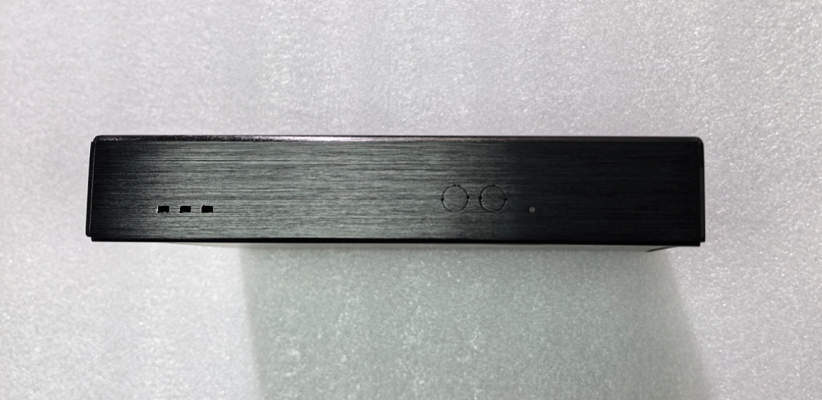

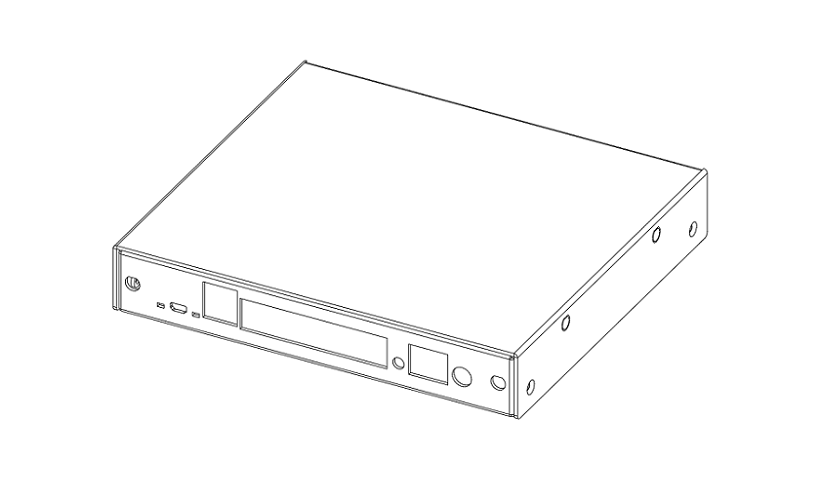

n808.aplx2 ( For aplx2 )
No SIM hole
6 SMA hole
Black anodized
Enclosure cooling
Wall mountable
The smallest profile (176x156x29mm)
Details
| n808.aplx2 | Enclosure for aplx2.4a4 |
| Status | Active |
| Part numbers |
n808.aplx1 = 4 LAN, 6 SMA, USB, black anodized,for aplx1 boards n808.aplx2 = 4 LAN, 6 SMA, USB, black anodized,for aplx2 boards |
| Spec |

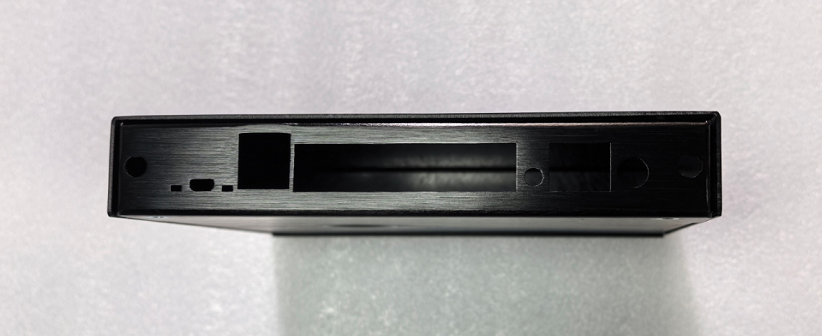

Enclosure designed for aplx boards. Cutouts for 3 LEDs and 1 switch in front. 4 LAN + 1 RJ45 console, 6 SMA connectors, DC jack, power button in back. Enclosure made of anodized or painted aluminum. Dimensions 176 mm wide x 156 mm deep x 29 mm high. RoHS compliant. |
| Includes | 4 screws to mount system board, 4 screws to close enclosure, 4 self-adhesive feet, 2 rubber plugs to close unused SMA holes, fixing kit of DC connector |
| Assembly notes | Mount aplx in enclosure, then fasten all screws.Mount rubber feet. |
| Customization | Customer silk screen, custom paint colors etc. are possible for volume orders. |
| Manufacturer | Broachlink |
| Origin | China |
