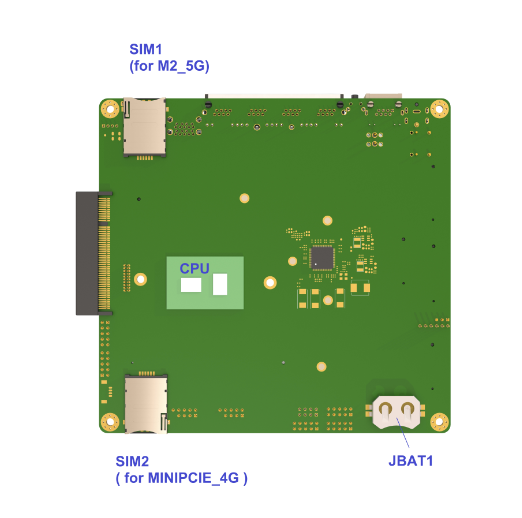

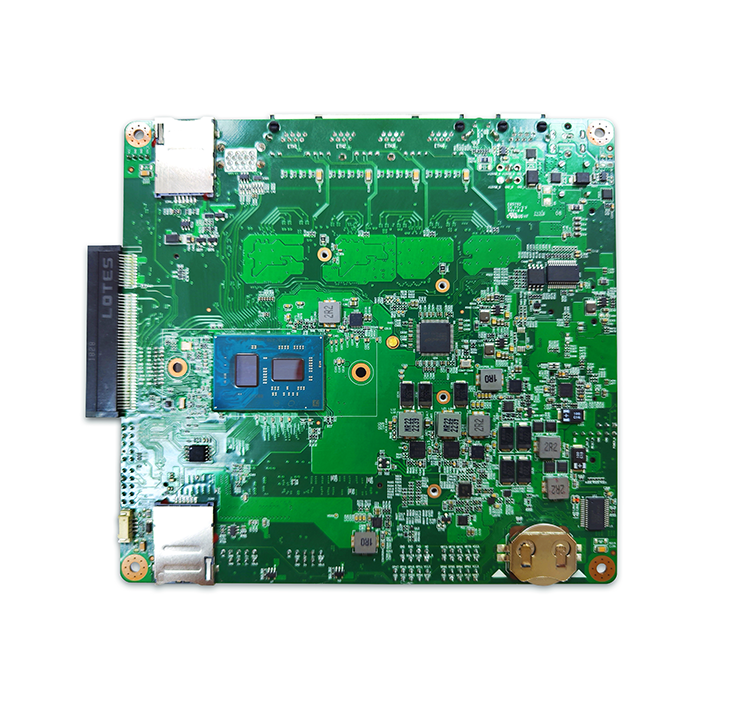

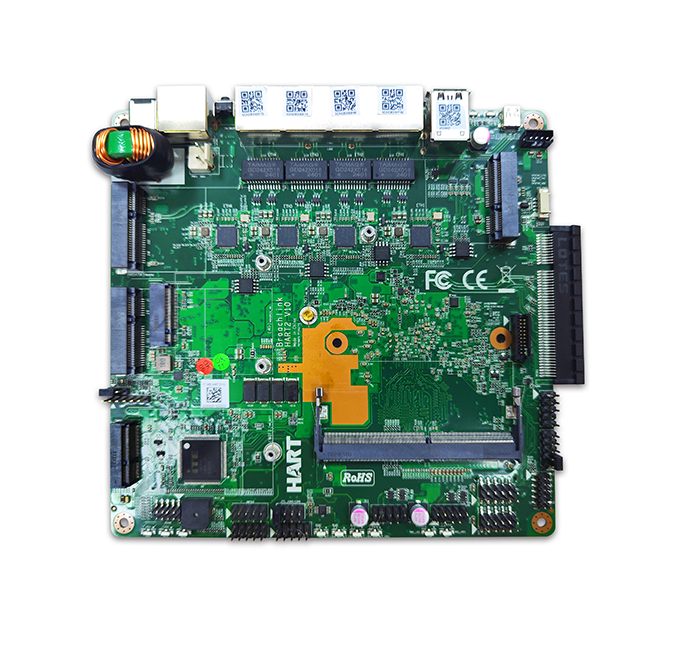

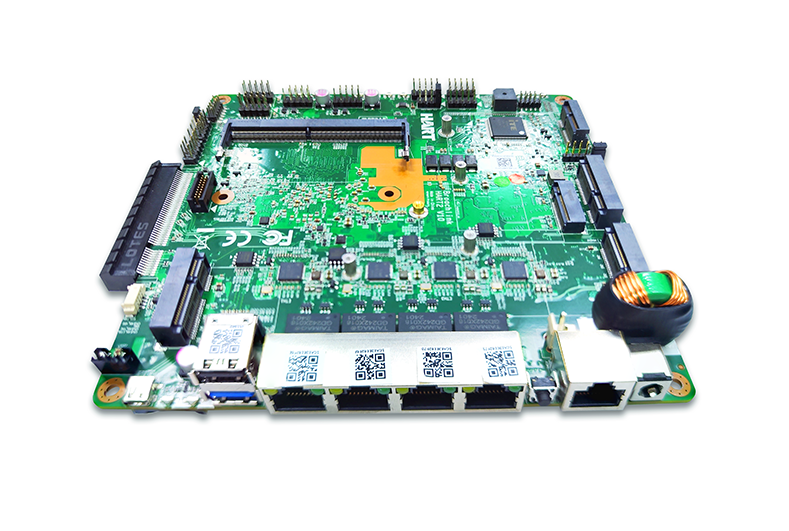

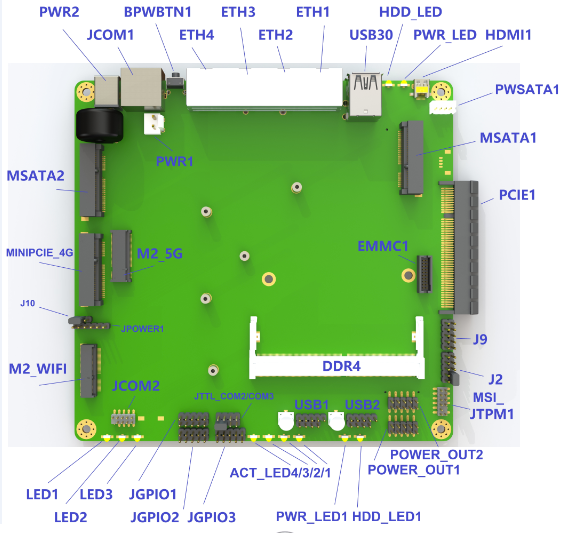

hart2(4*2.5g)
- Soft RAID capability
- DDR4 SODIMM slot
- Side PCIe slot ( SFP+ expansion capability)
- 4 x I226-V 2.5g Ethernet
- Micro-HDMI
- Dual Push-Push SIM Slot
- 3 x mPCIe Slot ( 1 4G/Lte,2 mSATA )
- 1 x M.2 E-key ( wifi7 expansion capability )
- 24 Channel GPIOs
- TPM header
-
eMMC header
- Upgrade EMC designing
- CE/FCC certification
- USB 3.0
Details
| hart2 | Router motherboard |
| Status | Active |
| Part numbers | BL-HART2 |
| Use with |
N4402-SFP /
N4402-10NIC enclosures 8GB DDR4 Memory 16G / 32G / 64G / 128G mSATA SSD psu12veu / psu12vus / psu12vuk AC adapter SIM7600G-H mPCIe 4G module RM502N-GL M.2 5G module wle200nx / wle600vx / wle900vx miniPCI express wireless modules
BL-TPM-M-
SPI
TPM module |
| Specification |
CPU: Intel Embedded Celeron Processor J6412, 2.60 GHz quad core with 64 bit and AES-NI support, 32K 8-way L1 data + 32K 8-way L1 instruction cache per core, shared 1.5MB L2 cache DRAM: 1 channel SODIMM DDR4-3200 DRAM Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB.Power in:12V DC, about 18 to 25W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 4 2.5Gigabit Ethernet channels (Intel i226-V ) I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 4 USB 2.0 internal, eleven front panel LEDs, push button Expansion: 3 miniPCI express (1 4GLte, 2 mSATA), 1 M.2 B key slot(4G/5G), 1 M.2 E key slot(wifi7),GPIO header, I2C bus, COM2/3 (TXD / RXD / GND) Board size: 6.3 x 6" (160 x 152.4 mm) Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink |
| Documentation | |
| Howto | How to program BIOS |
| Manufacturer | Broachlink |
| Origin | China |
| Contact ： | Richard |
|---|---|
| Phone ： | +86 13480930459 |
| Email ： | broachlink@gmail.com |
| Skype ： | dengliefeng |
| Wechat ： | 13480930459 |
| Address ： | C1002,Bao'an Plaza,Sungang E. Rd., Luohu Dist., Shenzhen, China |
