aw7915-np1 (wifi)
aw7915-np1 (wifi)
aw7915-np1 (wifi)

aw7915-np1 (wifi)

Details

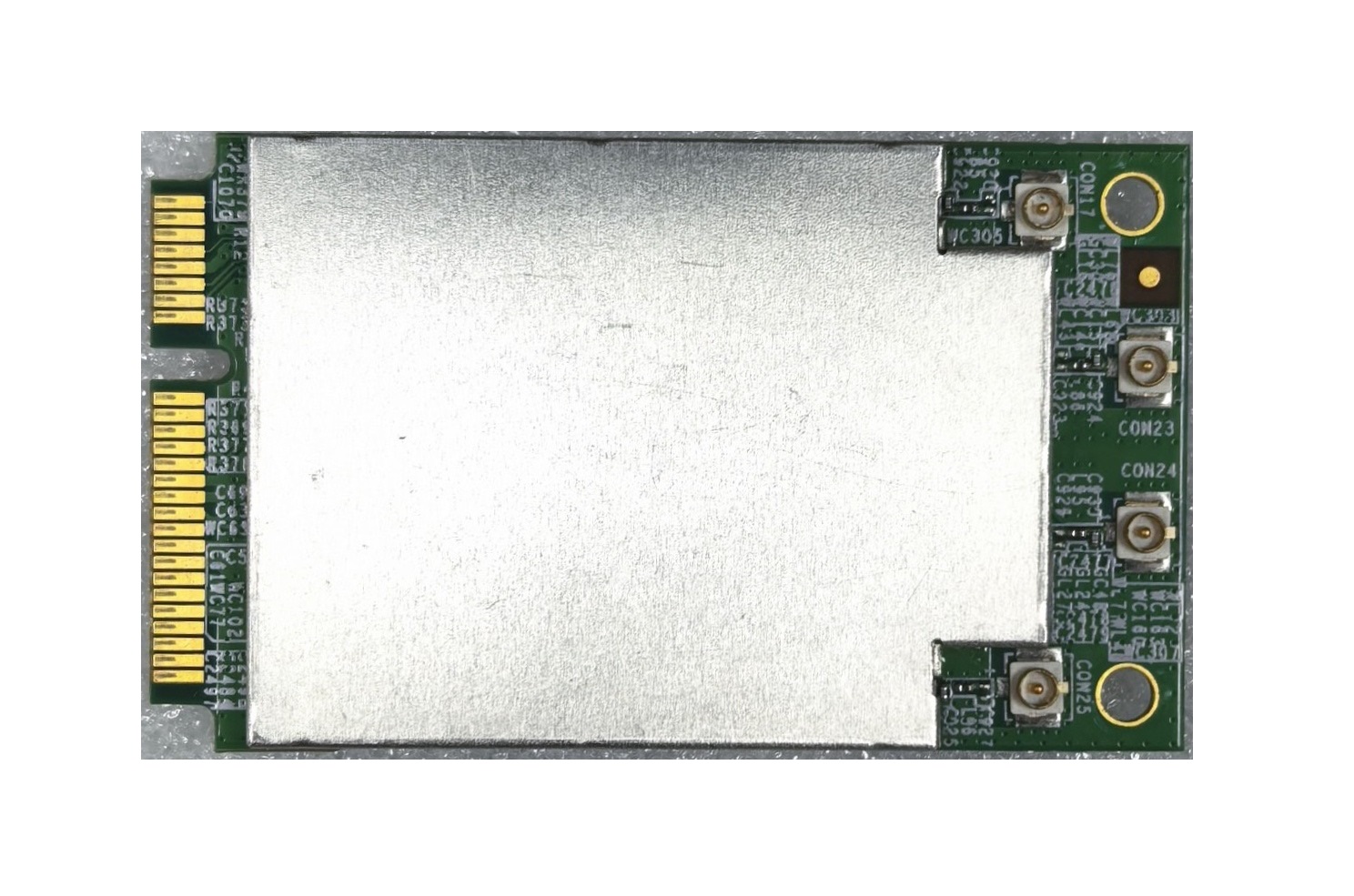

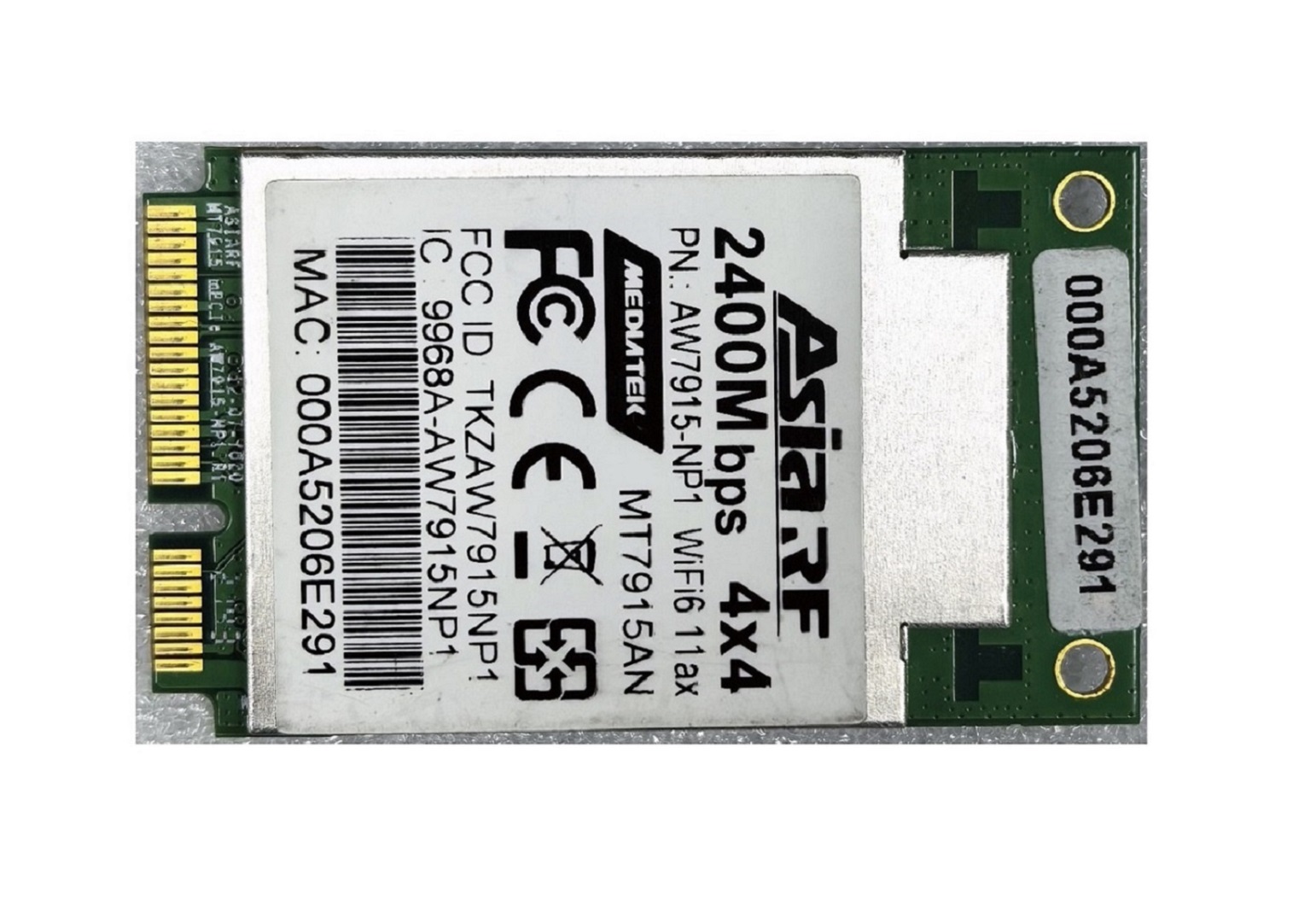

aw7915-np1 802.11ax/ac/b/g/n miniPCI express radio (4Tx4R)
Status Active
Part numbers aw7915-np1 = Asiarf aw7915-np1 ax miniPCI express radio card,4T4R
Use with All noah/hart/aplx system boards
ip1.pigsma pigtail (recommend )
sfat4 2.4 GHz wifi antenna or sfat5 dual band wifi antenna (recommend four)
Note Wireless radio cards are ESD sensitive, especially the RF switch and the power amplifier. To avoid damage by electrostatic discharge, the following installation procedure is recommended:
  • Touch your hands and the bag containing the radio card to a ground point on the router board (for example one of the mounting holes). This will equalize the potential of radio card and router board.
  • Install the radio card in the miniPCI express socket.
  • Install the pigtail cable in the cutout of the enclosure. This will ground the pigtail to the enclosure.
  • Touch the IPEX-1 connector of the pigtail to the mounting hole (discharge), then plug onto the radio card.
  • Use external lightning protection for outdoor applications.
  • Media Tek MT7915
  • IPEX-1 connector
Document datasheet
Compliance FCC & CE. Intended for professional use.
Warranty 1 year
Origin China
