  • 4 x WGI211AT
  • Dual SIM Slot
  • Dual mSATA slot ( support RAID in debian )
  • 4 x mPCIe Slot ( 1 4G/Lte,1 Wifi/USB,1 mSATA/4G, 1 mSATA )
  • 24 Channel GPIOs
  • HDMI
  • Upgrade EMC designing
  • CE/FCC certification
  • USB 3.0
Details

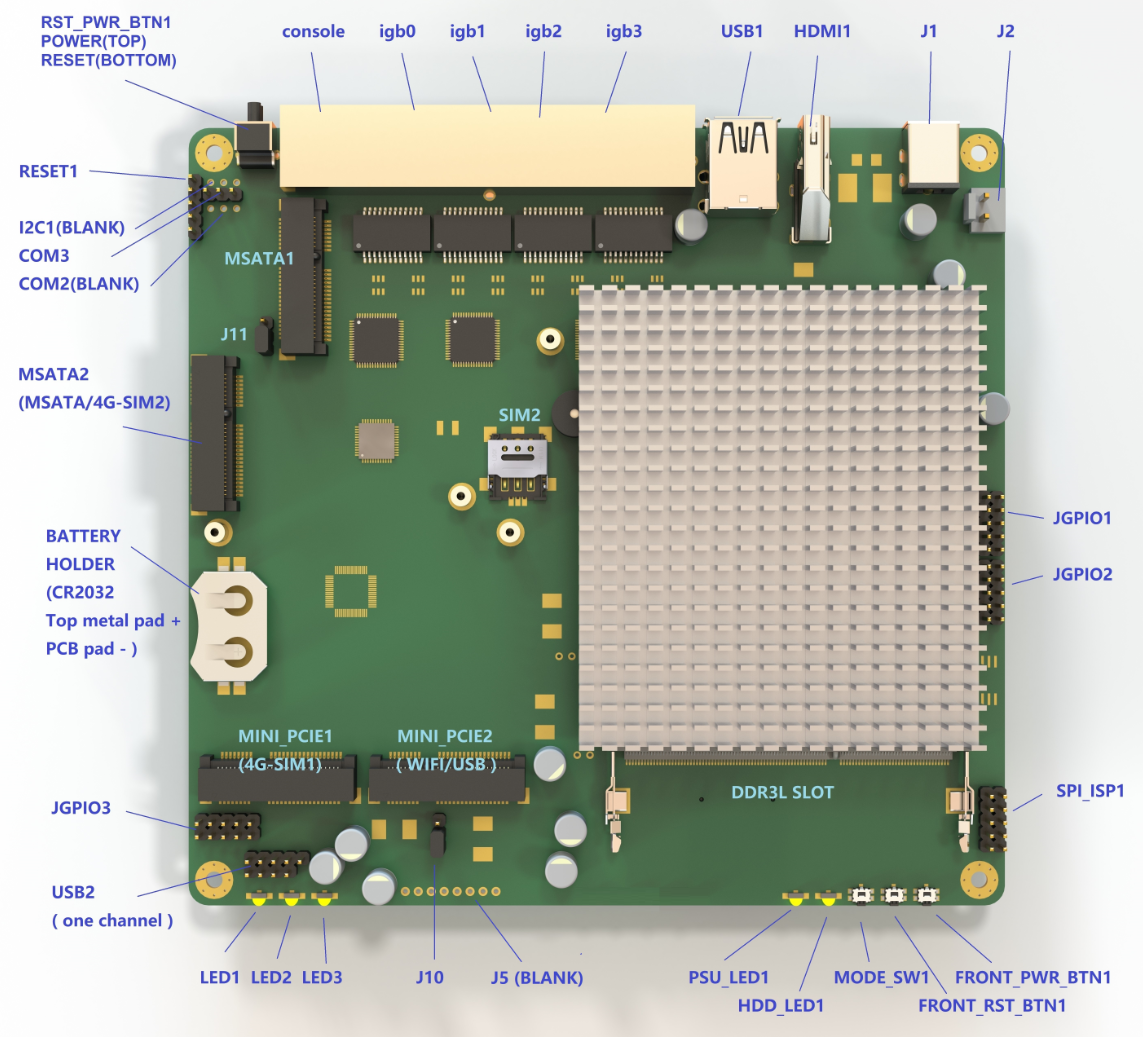

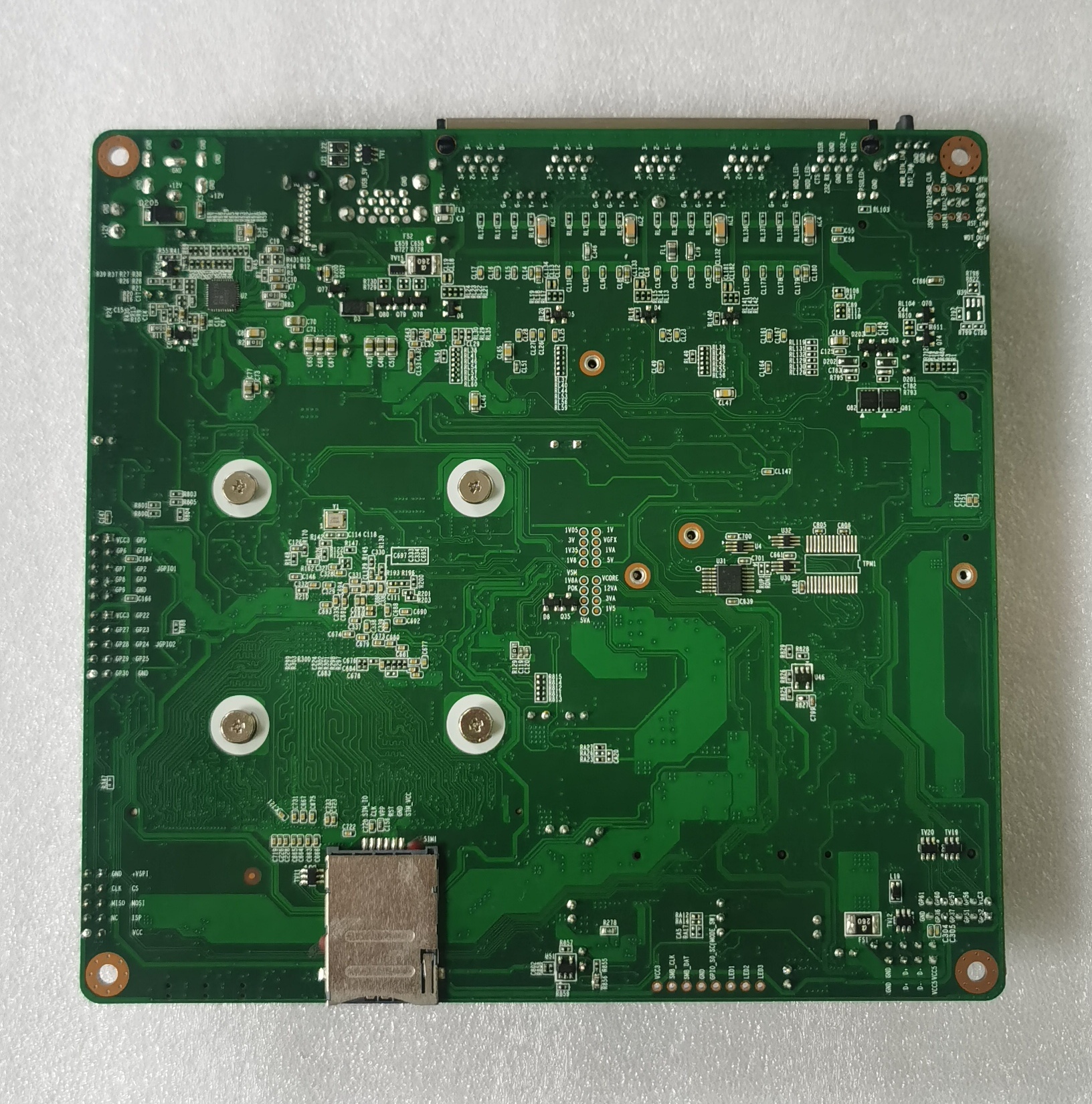

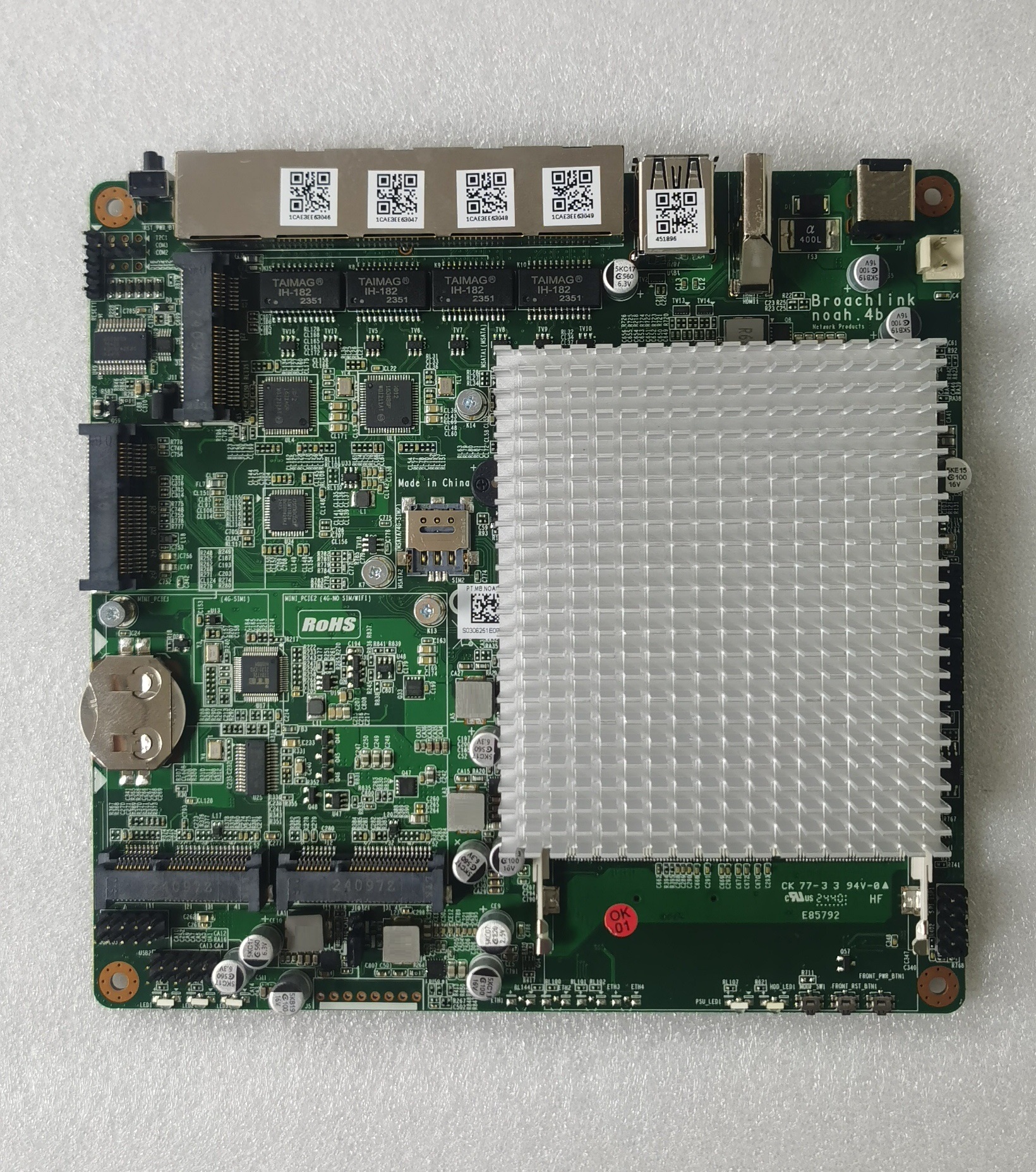

noah4b Router motherboard
Status Active
Part numbers BL-NOAH4B
Use with N1296  enclosures
4G DDR3L   /   8G DDR3L   Memory

16G /   32G   /   64G   mSATA SSD

psu12veu2 /   psu12vus2 /   psu12vuk2  AC adapter

psu12veu /   psu12vus /   psu12vuk  AC adapter

SIM7600G-H  mPCIe 4G module

wle200nx  /    wle600vx  /    wle900vx    miniPCI express wireless modules

Specification CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB).
DRAM: SODIMM DDR3-1333 DRAM
Storage: Boot from m-SATA SSD, or external USB. 1 SATA + power connector.
Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive
Connectivity: 4 Gigabit Ethernet channels (Intel i211AT )
I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, five front panel LEDs, pushbutton
Expansion: 4 miniPCI express (two with SIM socket), GPIO header, I2C bus, COM3 (TXD / RXD / GND)
Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah5
Firmware: AMI
Cooling: 77 x 88 mm aluminum heatsink
Documentation

Manual(coming soon)

Install pfsense2.7.2 to soft RAID of NOAH4 (pdf)

Howto How to program BIOS
Manufacturer Broachlink
Origin China
