| n906 | Enclosure for noah4c |
| Status | Active |
| Part numbers | BL-N906-BLK = 3 LAN, 2 + 4 SMA, USB, black anodized |

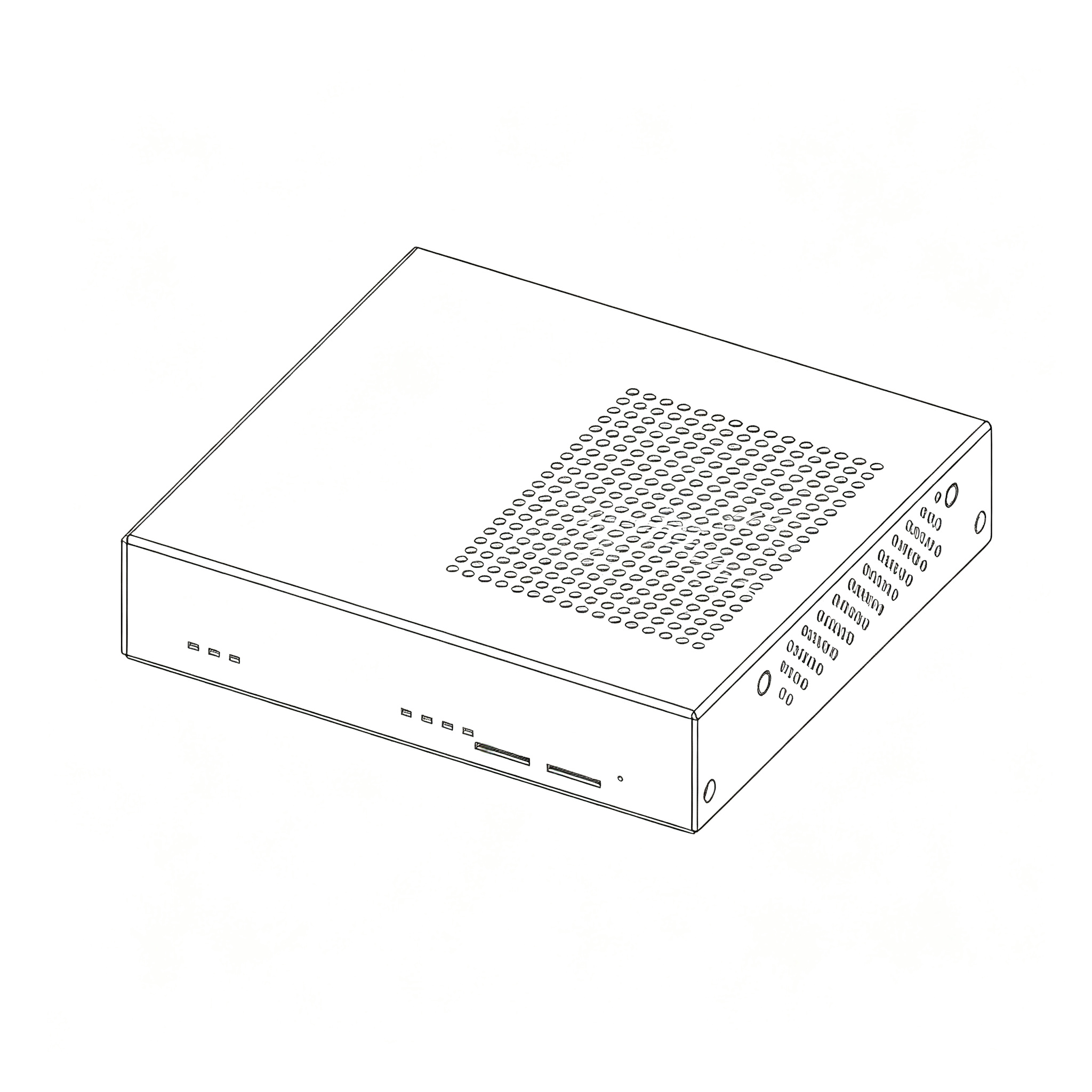

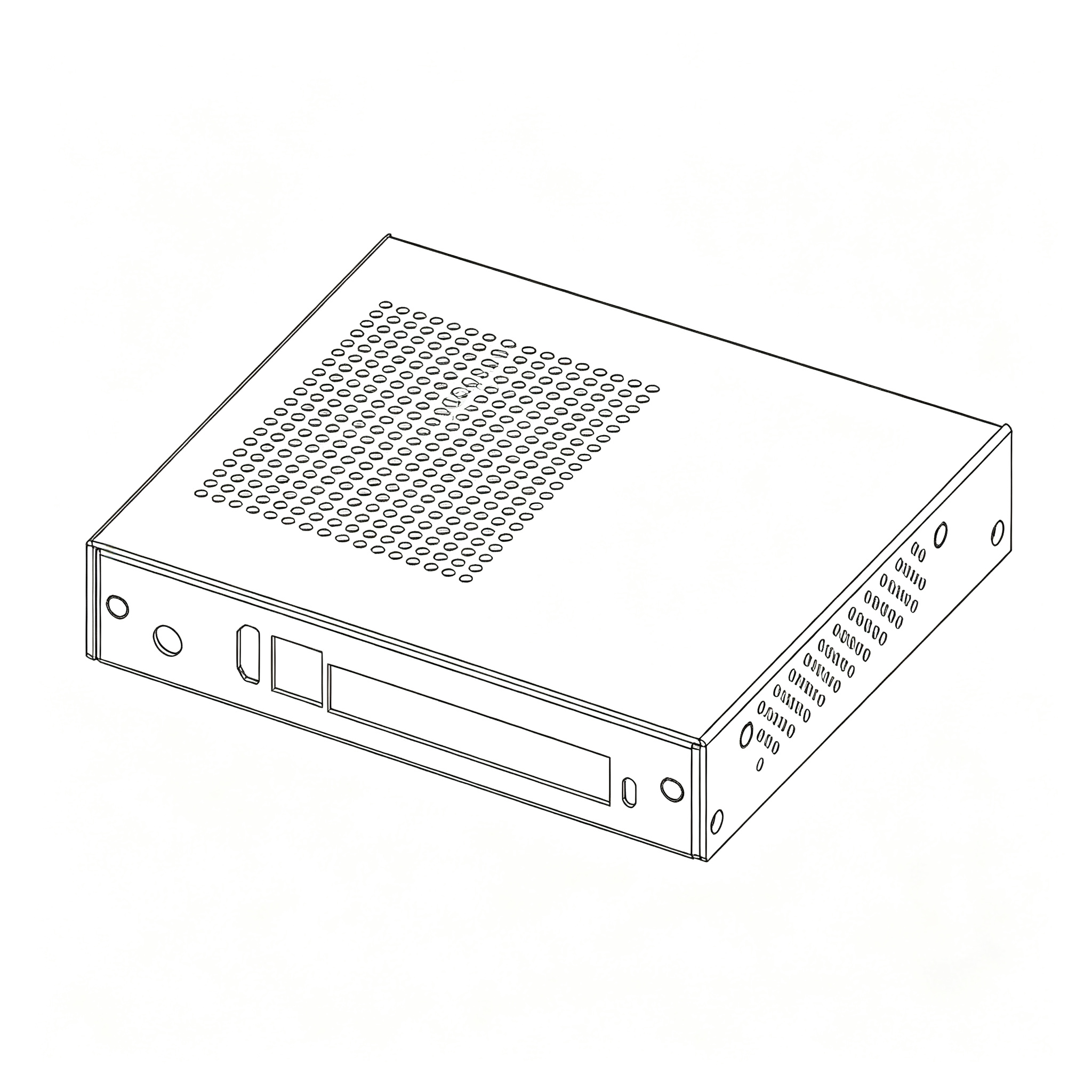

| Spec | Enclosure designed for noah4c boards. Cutouts for 7 LEDs and 1 GPIO button in front, cutouts for 2 SIM, 1 HDMI, 4 LAN, 2 SMA connectors, DC jack in back, power button and reset button in back. knockout for , 4 SMA connectors.Enclosure made of anodized or painted aluminum. Dimensions 176 mm wide x 156 mm deep x 36 mm high. RoHS compliant. |
| Includes | 4 screws to mount system board, 4 screws to close enclosure, 4 self-adhesive feet, 2 or 3 rubber plugs to close unused SMA holes, fixing kit of DC connector |
| Assembly notes | Mount noah board in enclosure, then fasten all screws.Mount rubber feet. |
| Customization | Customer silk screen, custom paint colors etc. are possible for volume orders. |
| Manufacturer | Broachlink |
| Origin | China |
