noah.spc (2 NICs)
- 2 x WGI211AT
- Hinge Type SIM Slot
- 2 x mPCIe Slot ( 1 4G/Lte,1 mSATA )
- 8 Channel GPIOs
- eMMC Header
- Upgrade EMC designing

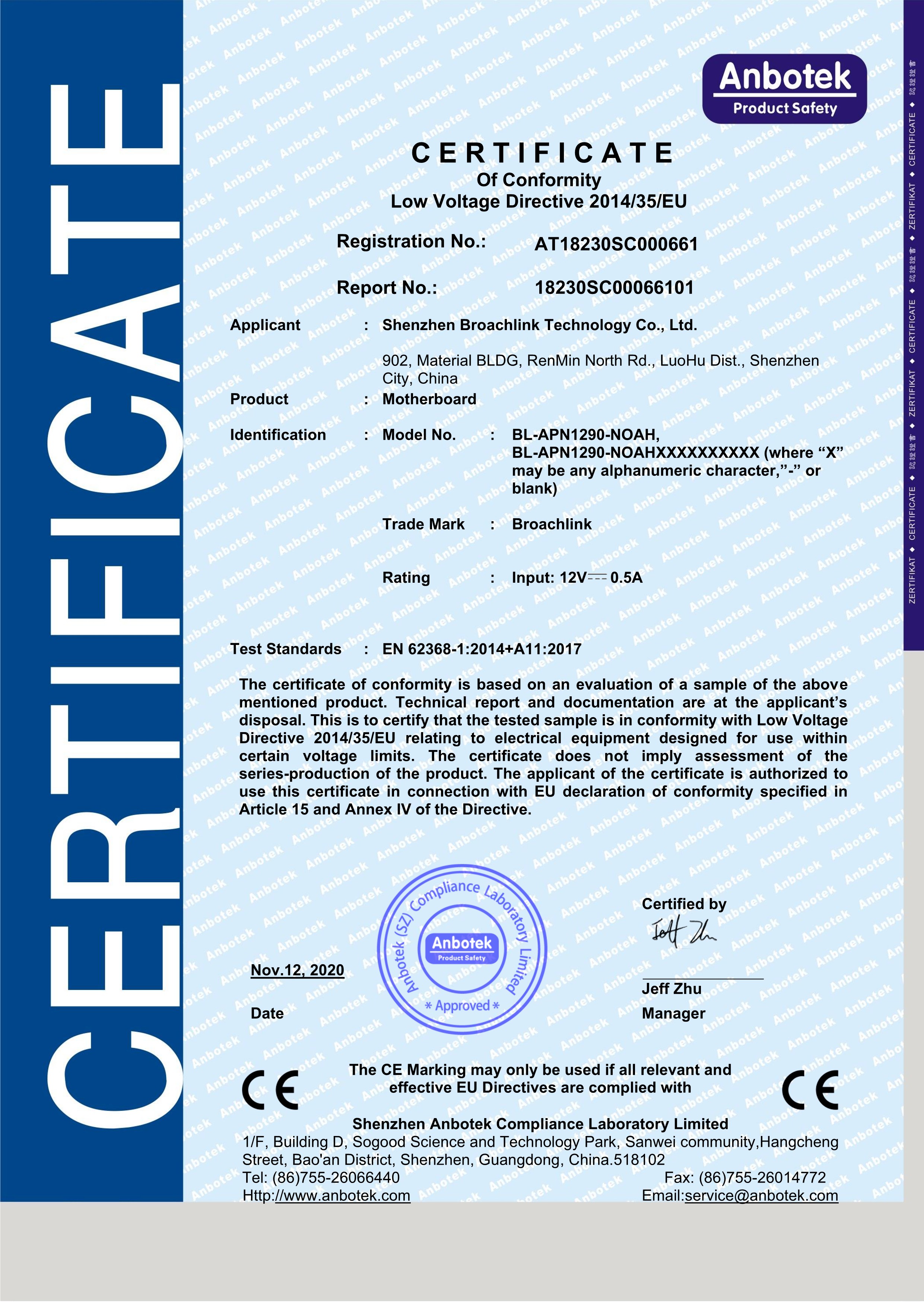

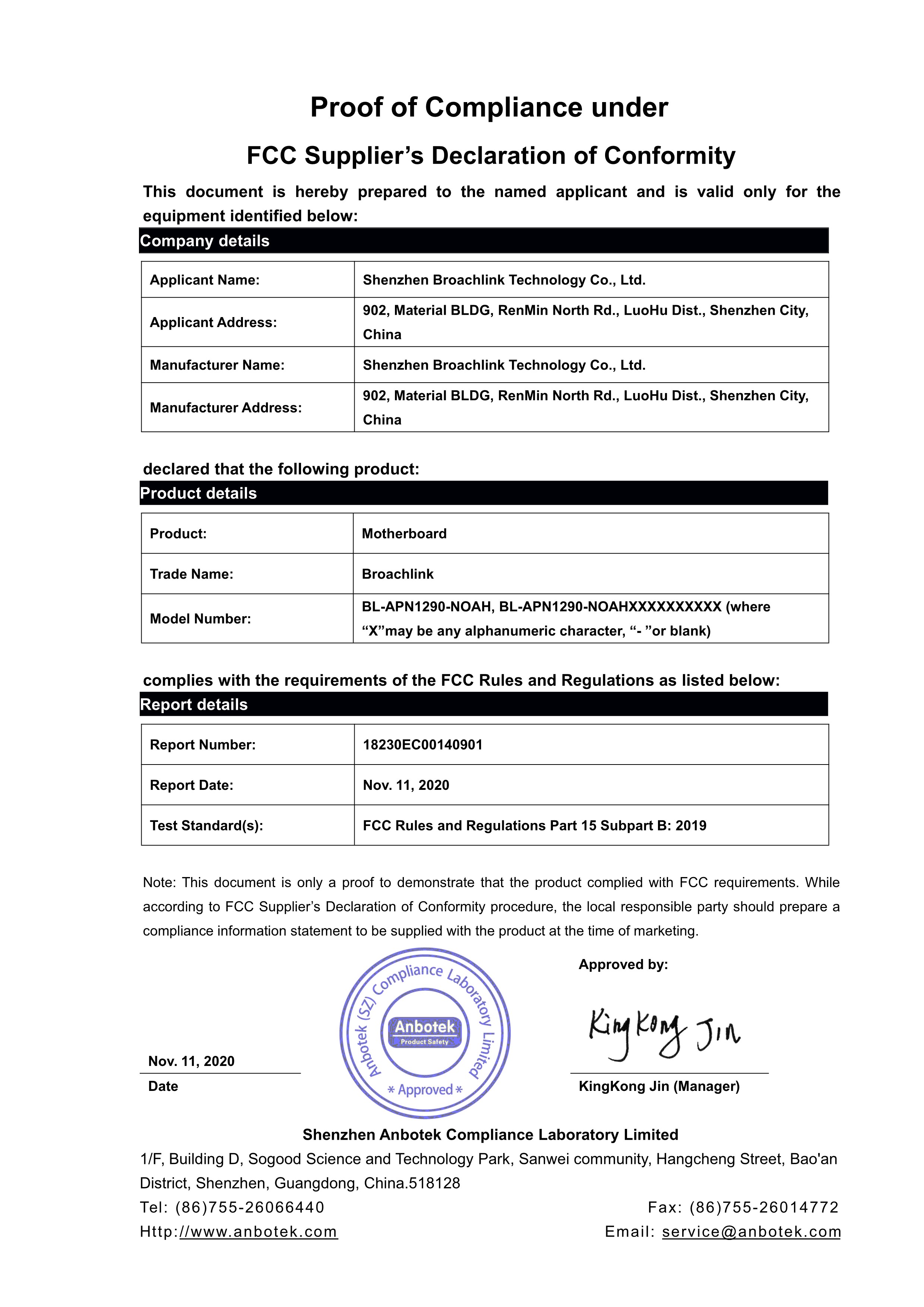

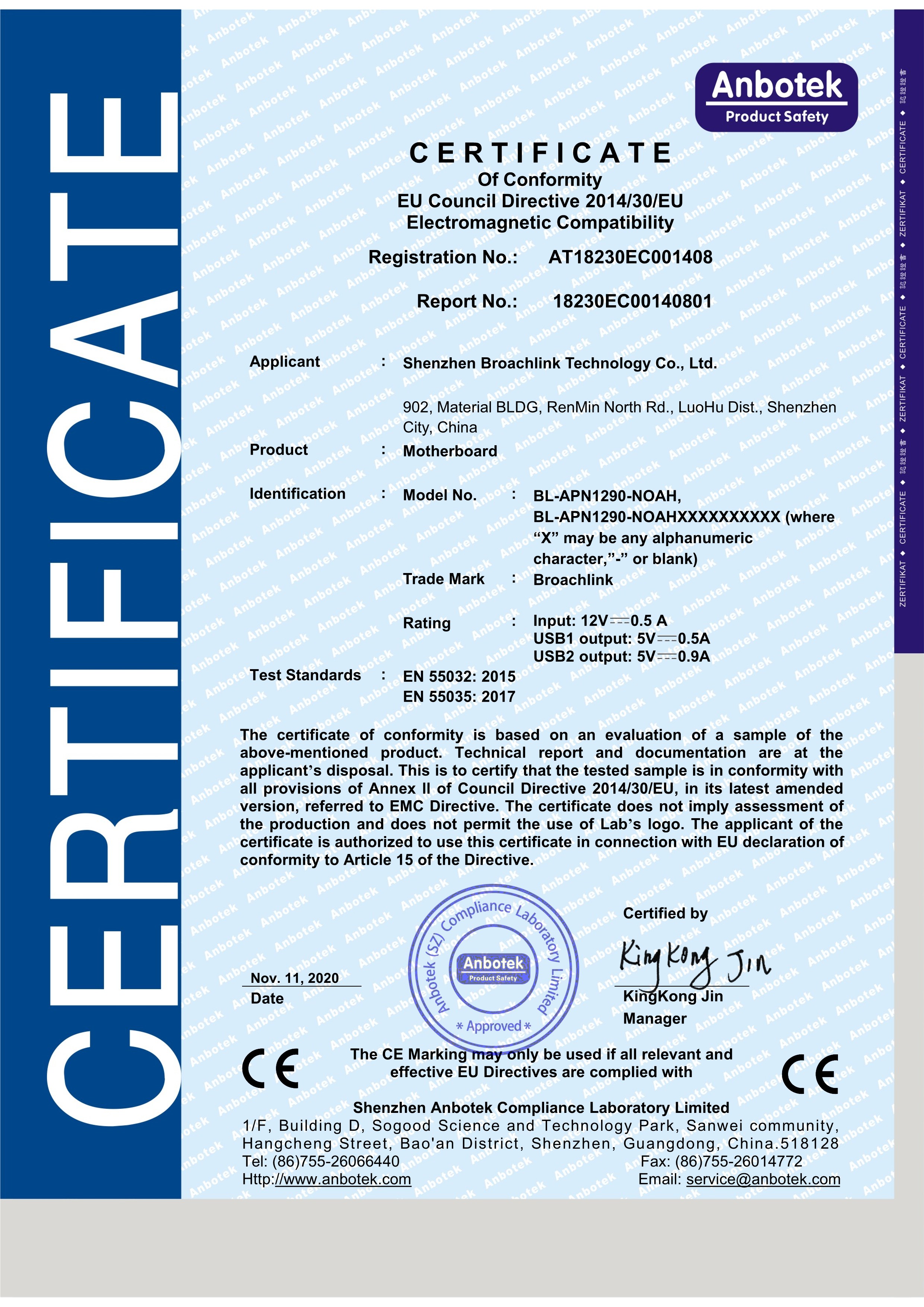

- CE/FCC certification
- USB 3.0
Details

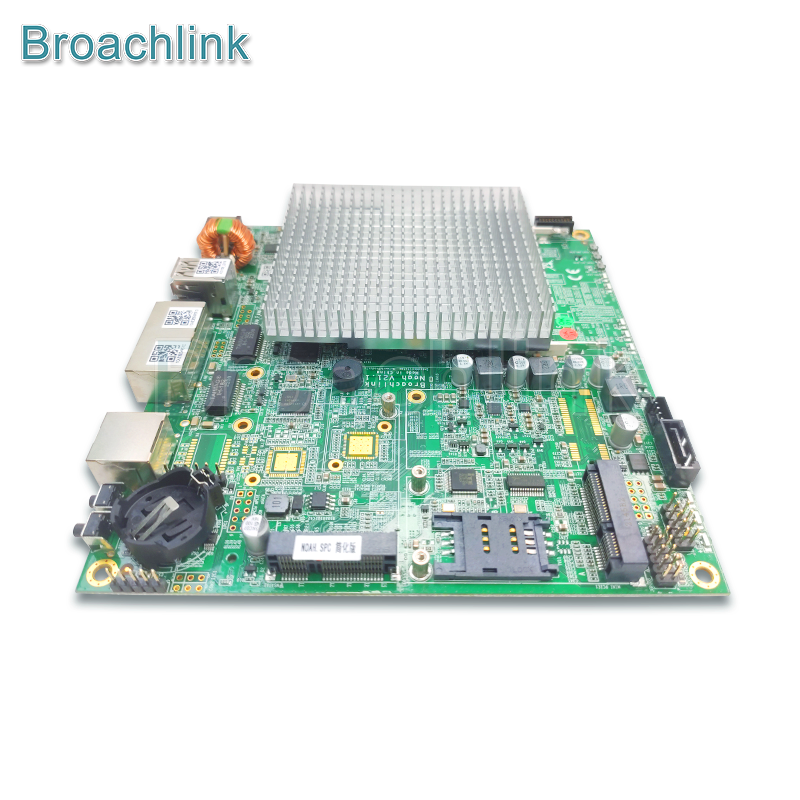

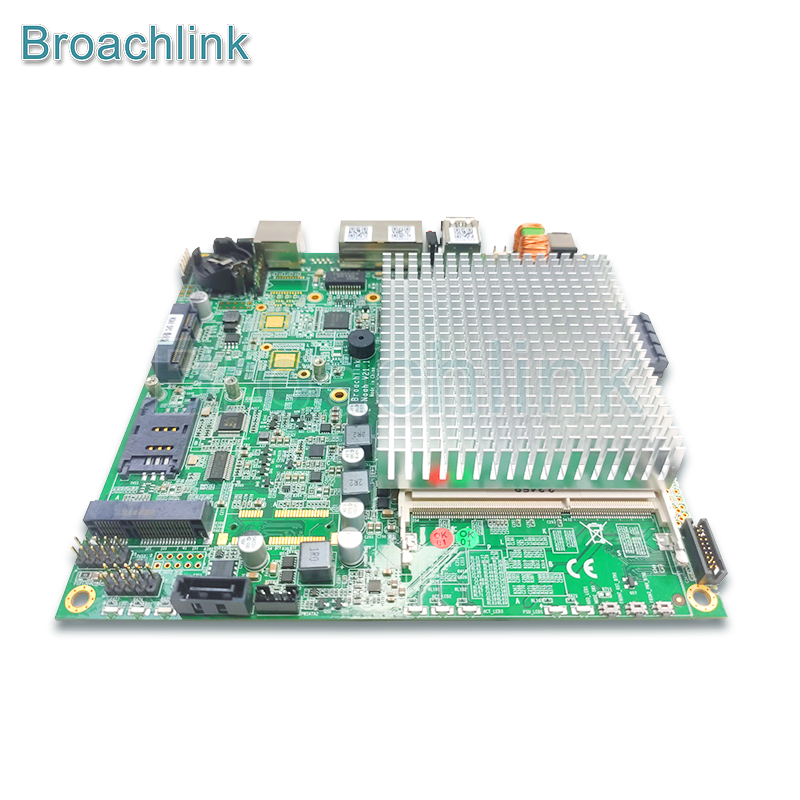

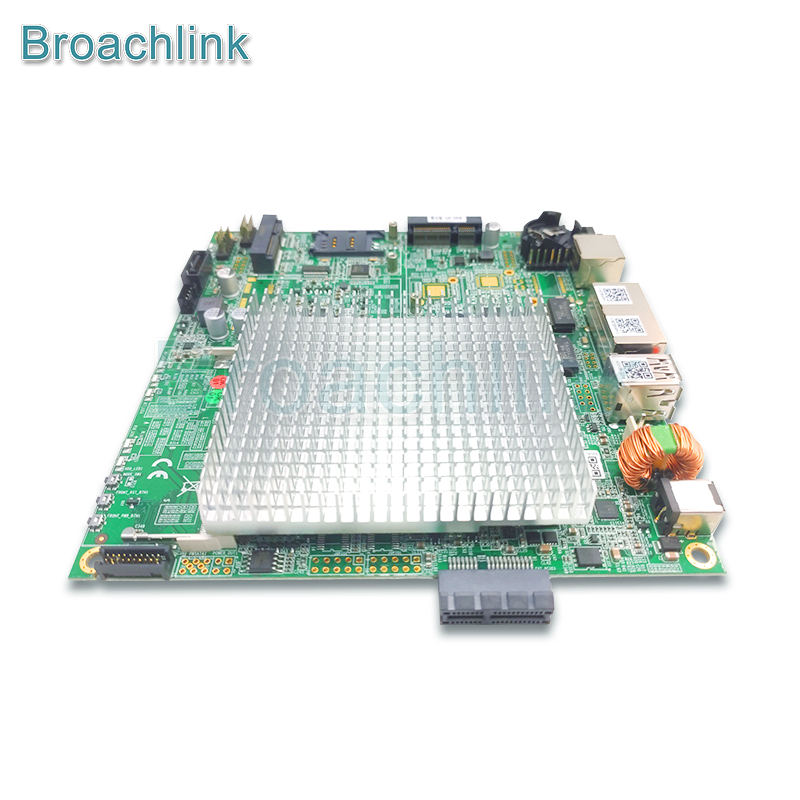

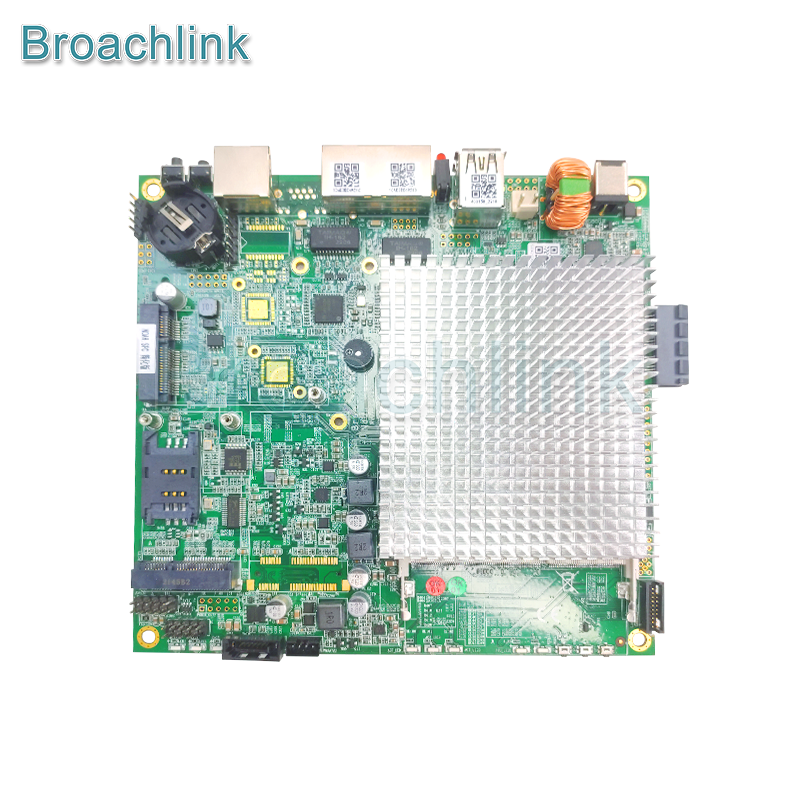

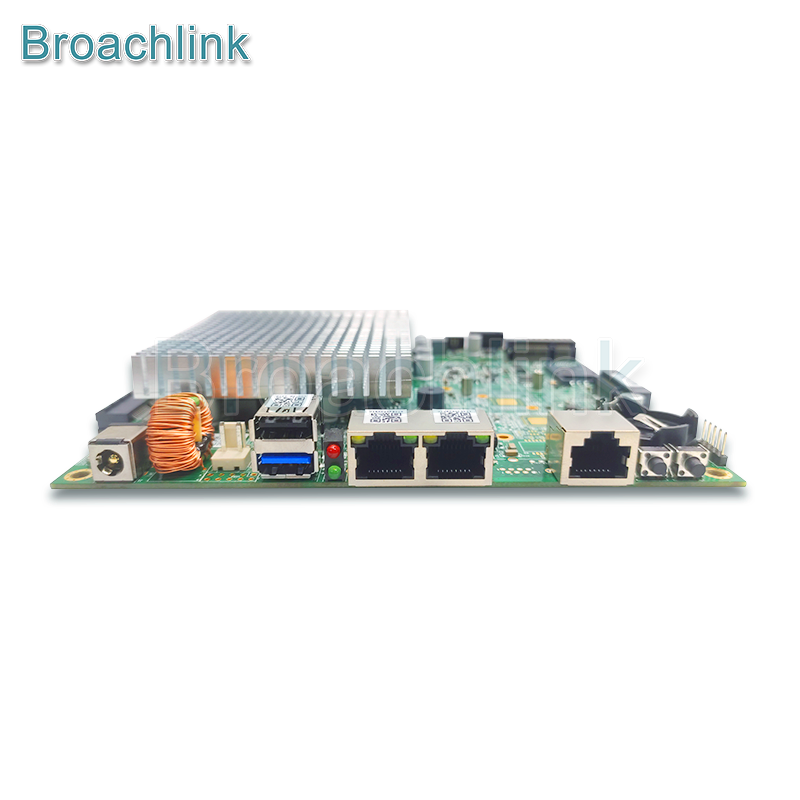

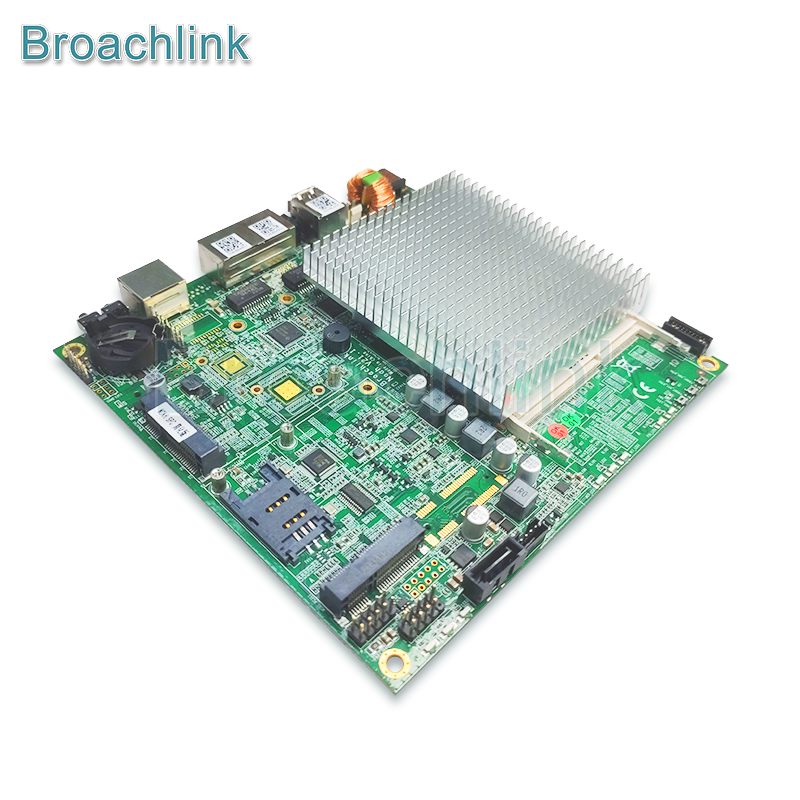

noah.spc
Router motherboard
Status
Active
Part numbers
BL-NOAH.SPC-E3845V10
Use with
N1295
/
N1290
enclosures
4G DDR3L /
8G DDR3L Memory
16G /
32G /
64G mSATA SSD
psu12veu /
psu12vus /
psu12vuk AC adapter
SIM7600G-H
mPCIe 4G module
Specification
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB)
DRAM: SODIMM DDR3-1333 DRAM
Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector.
Power in:12V DC, about 5 to 12W depending on CPU load. Jack = 2.5 mm, center positive
Connectivity:
2 Gigabit Ethernet channels (Intel i211AT)
I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, eight front panel LEDs, push button
Expansion: 2 miniPCI express (1 4GLte/Wifi, 1 mSATA), GPIO header, I2C bus, COM3/4 (TXD / RXD / GND)
Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah4
Firmware: AMI
Cooling: 77 x 88 mm aluminum heatsink
Documentation
Howto
How to program BIOS
Manufacturer
Broachlink
Origin
China
noah.spc |
Router motherboard |
Status |
Active |
Part numbers |
BL-NOAH.SPC-E3845V10 |
Use with |
N1295
/
N1290
enclosures SIM7600G-H mPCIe 4G module |
|
Specification |
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB) |
|
Documentation |
|
|
Howto |
How to program BIOS |
|
Manufacturer |
Broachlink |
|
Origin |
China |
