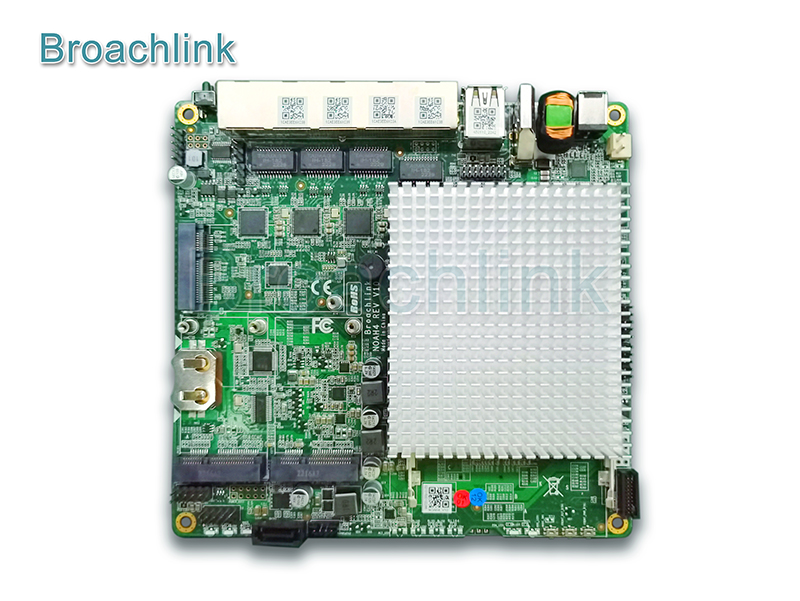

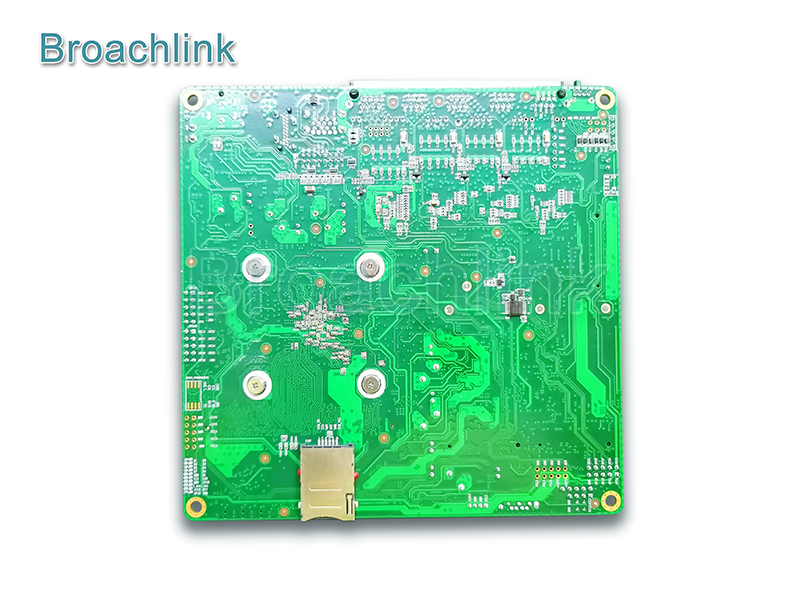

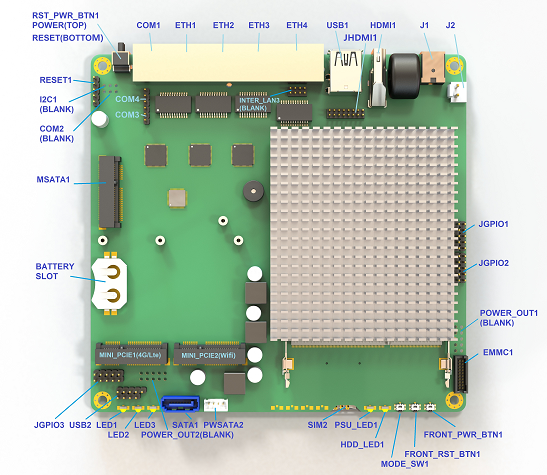

noah4 (4 NICs)
- 4 x WGI211AT
- Push-Push SIM Slot
- 3 x mPCIe Slot ( 1 4G/Lte,1 Wifi,1 mSATA )
- 24 Channel GPIOs
- HDMI
- eMMC Header
- Upgrade EMC designing
- CE/FCC certification
- USB 3.0
Details
noah4 | Router motherboard |
Status | Active |
Part numbers | BL-NOAH4-E3845V10 |
Use with |
N1296 enclosures 4G DDR3L / 8G DDR3L Memory 16G / 32G / 64G mSATA SSD psu12veu / psu12vus / psu12vuk AC adapter SIM7600G-H mPCIe 4G module |
Specification |
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB). DRAM: SODIMM DDR3-1333 DRAM Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector. Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 4 Gigabit Ethernet channels (Intel i211AT ) I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, five front panel LEDs, pushbutton Expansion: 3 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM3/4 (TXD / RXD / GND) Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah5 Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink |
Documentation | |
Howto | How to program BIOS |
Manufacturer | Broachlink |
Origin | China |
Contact : | Richard |
---|---|
Phone : | +86 13480930459 |
Email : | broachlink@gmail.com |
Skype : | dengliefeng |
Wechat : | 13480930459 |
Address : | 1212, Yongtong BLDG,No.3146 RenMin North Rd.,LuoHu district,Shenzhen City,China |
