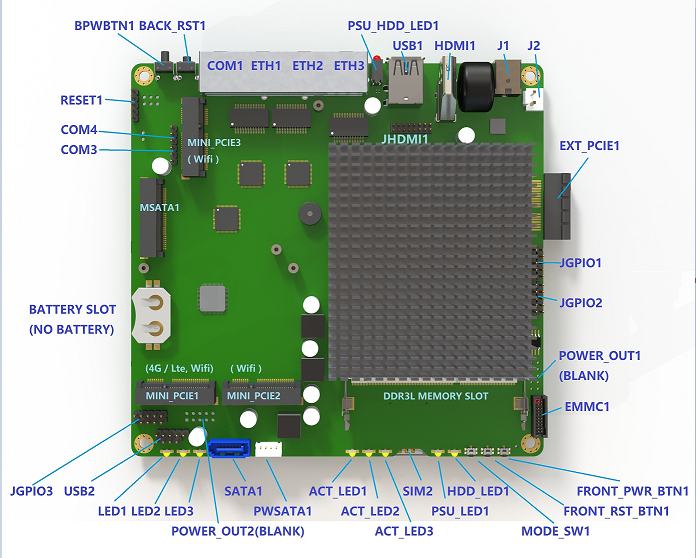

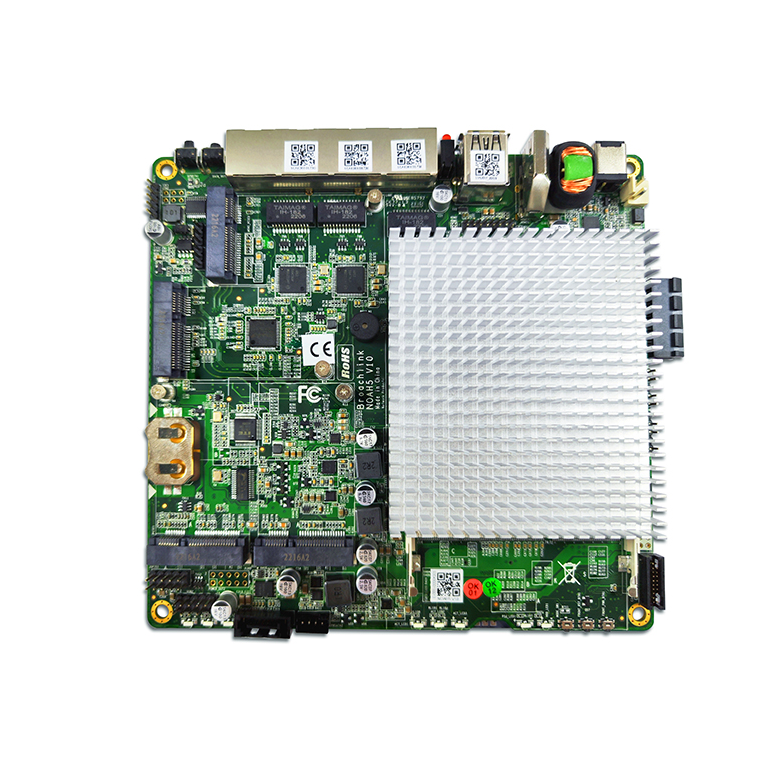

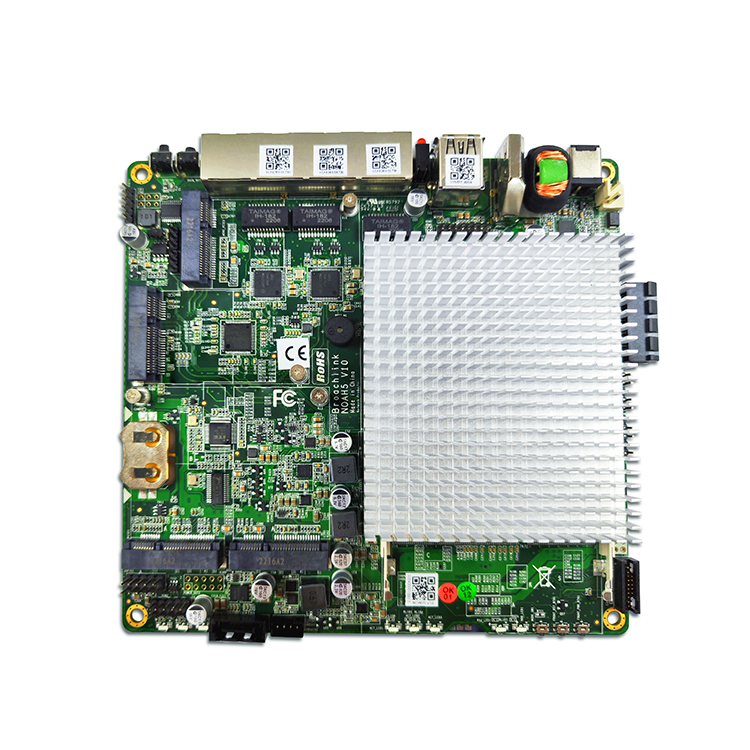

noah5.tpm (3 NICs)
- Onboard TPM2.0
- 3 x WGI211AT
- Push-Push SIM Slot
- 4 x mPCIe Slot ( 1 4GLte/Wifi,2 Wifi,1 mSATA )
- 24 Channel GPIOs
- HDMI
- eMMC Header
- Upgrade EMC designing
- CE/FCC certification
- USB 3.0
Details
psu12veu / psu12vus / psu12vuk AC adapter
SIM7600G-H mPCIe 4G module
noah5.tpm
Router motherboard
Status
Active
Part numbers
BL-NOAH5.TPM-E3845V10
Use with
N1295 / N1290 enclosures
4G DDR3L / 8G DDR3L Memory
16G / 32G / 64G mSATA SSD
Specification
CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB)
DRAM: SODIMM DDR3-1333 DRAM
Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector.
Power in:12V DC, about 8 to 12W depending on CPU load. Jack = 2.5 mm, center positive
Connectivity: 4 Gigabit Ethernet channels (Intel i211AT )
I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, eight front panel LEDs, push button
Expansion: 4 miniPCI express (1 4GLte/Wifi,2 Wifi, 1 mSATA), GPIO header, I2C bus, COM3/4 (TXD / RXD / GND)
Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah4
Firmware: AMI
Cooling: 77 x 88 mm aluminum heatsink
Documentation
Manual
Howto
How to program BIOS
Manufacturer
Broachlink
Origin
China
