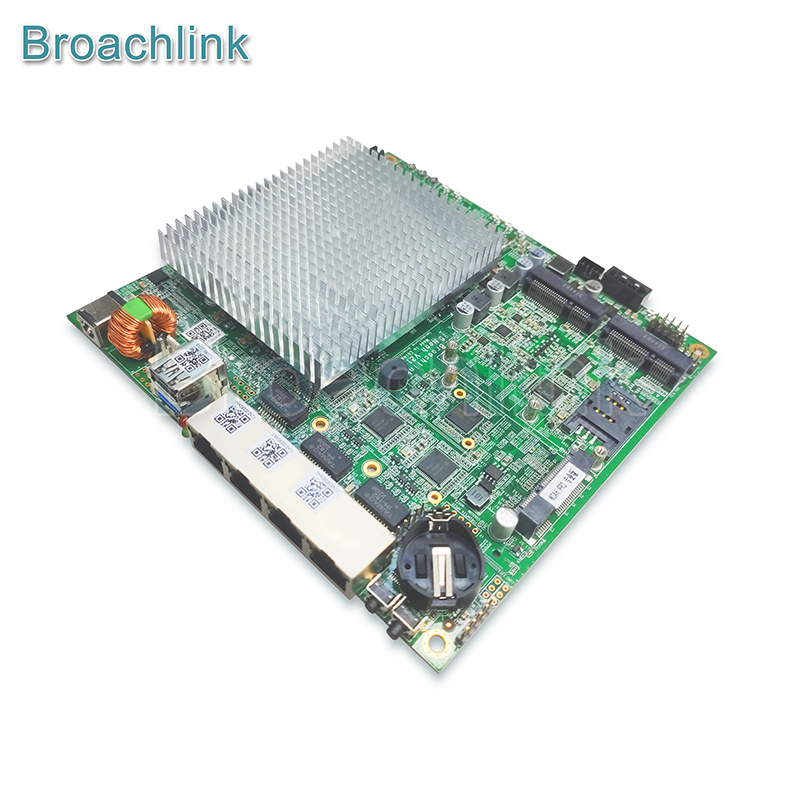

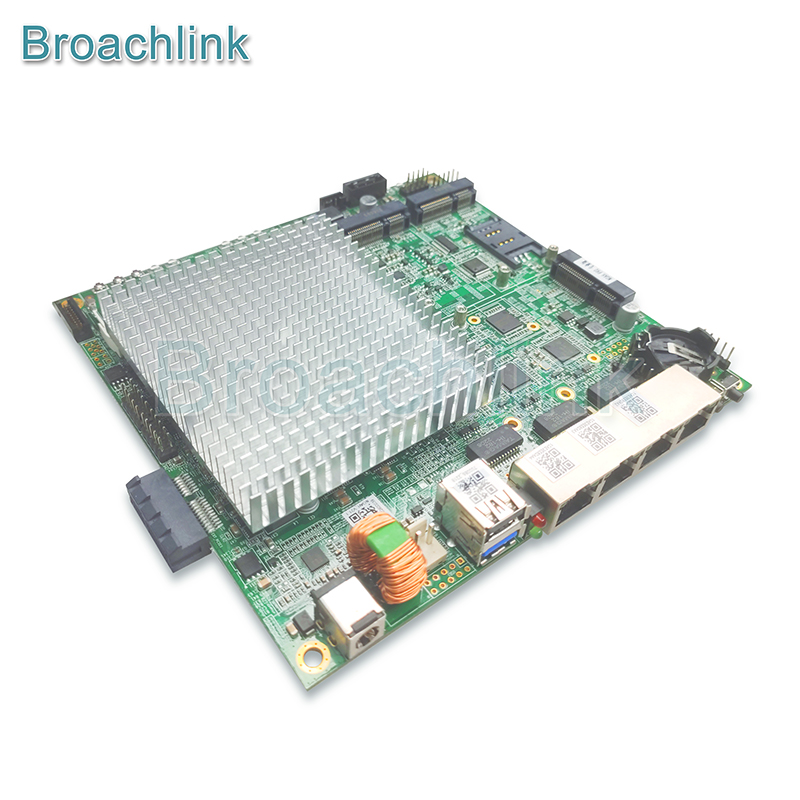

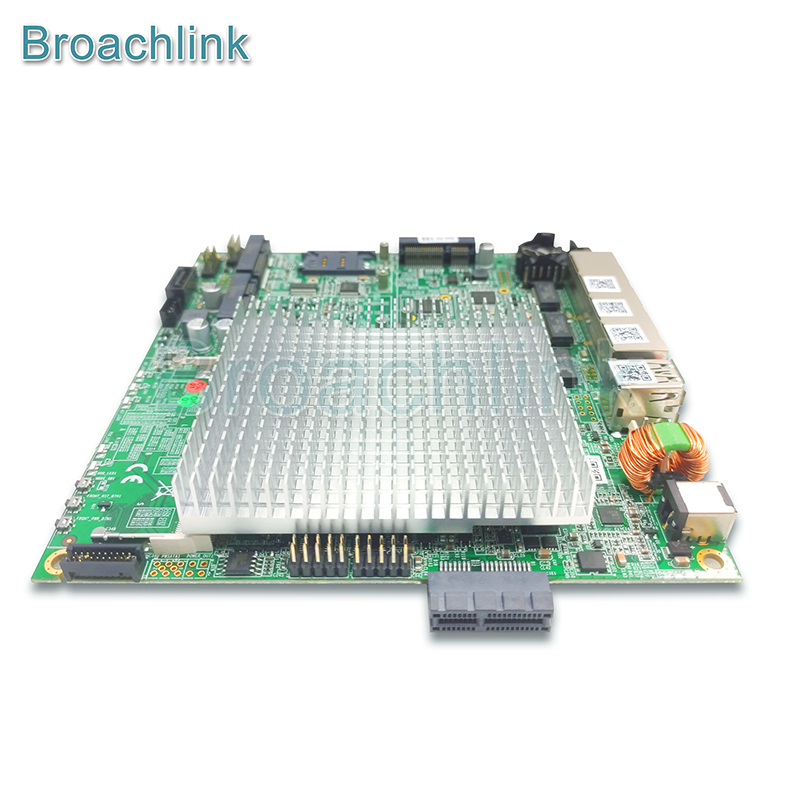

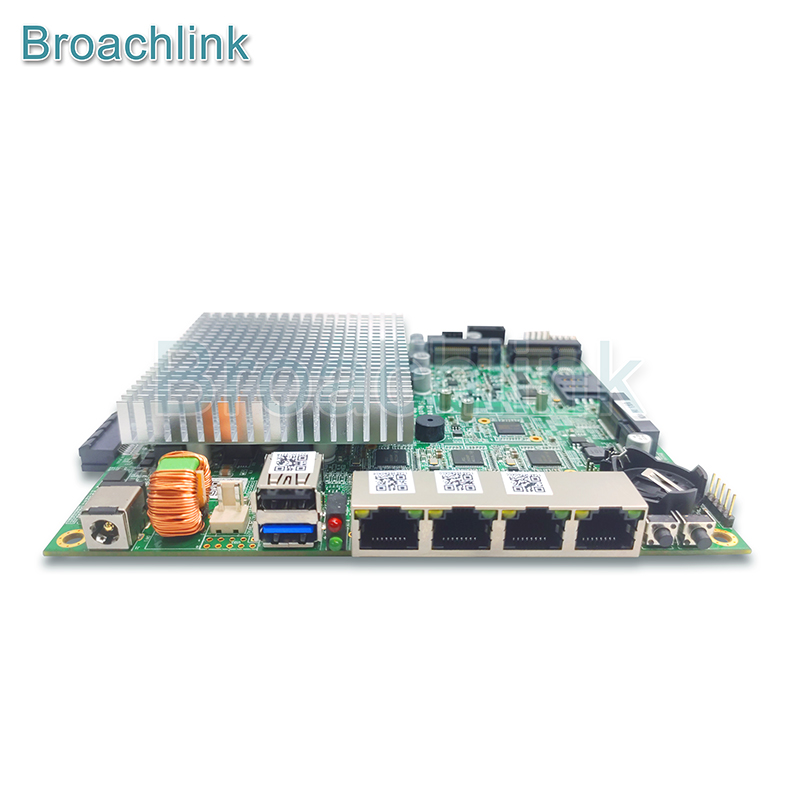

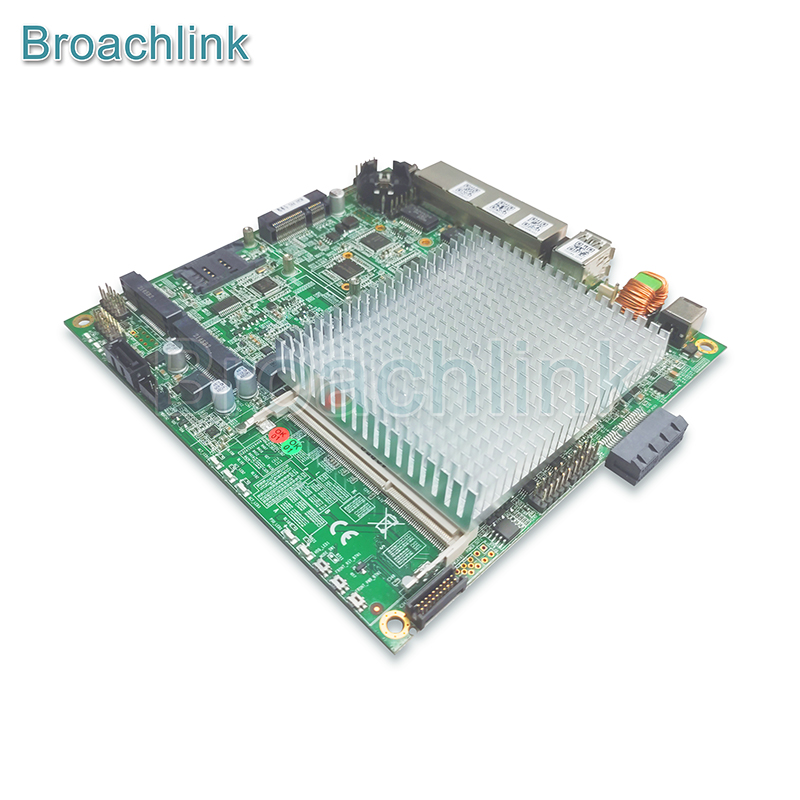

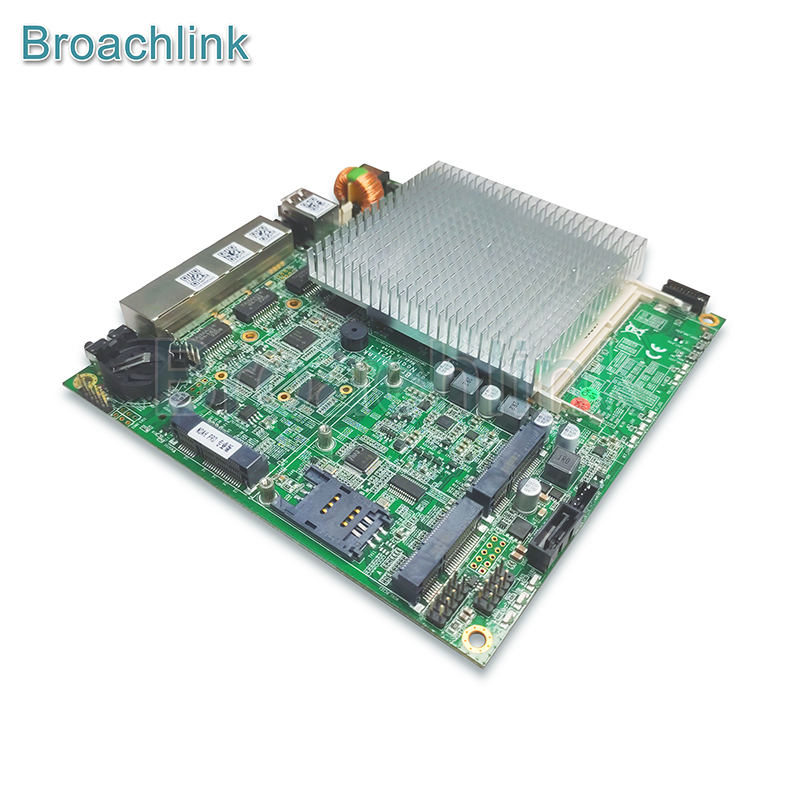

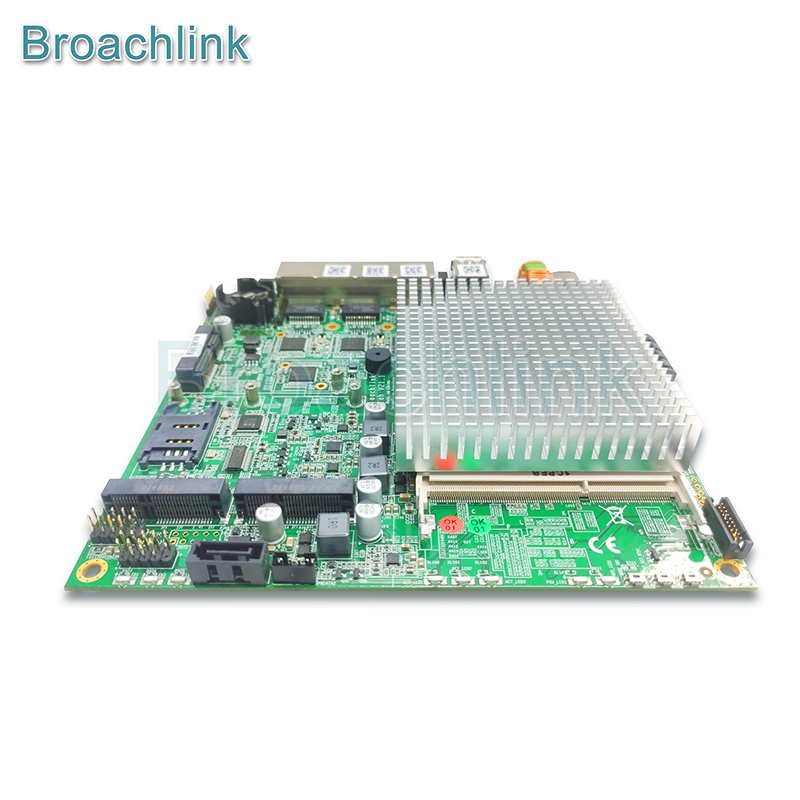

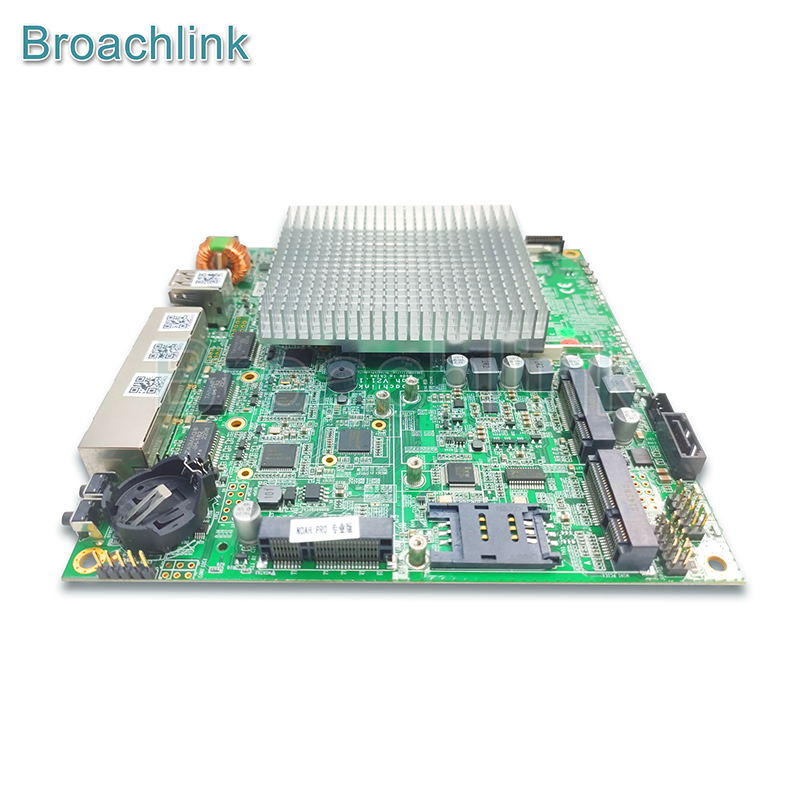

noah.std	Router motherboard
Status	To be negotiated
Part numbers	BL-NOAH.STD-E3845V10
Use with	N1295  /   N1290    enclosures 4G DDR3L   /    8G DDR3L   Memory 16G /    32G   /    64G   mSATA SSD psu12veu /    psu12vus /    psu12vuk  AC adapter SIM7600G-H  mPCIe 4G module
Specification	CPU: Intel Embedded Atom series E3845, 1.91 GHz quad core with 64 bit and AES-NI support, 24K 6-way L1 data + 32K 8-way L1 instruction cache per core, 512KB L2 cache per core (Total 2MB) DRAM: SODIMM DDR3-1333 DRAM Storage: Boot from m-SATA SSD, eMMC card (internal eMMC controller), or external USB. 1 SATA + power connector. Power in:12V DC, about 5 to 12W depending on CPU load. Jack = 2.5 mm, center positive Connectivity: 3  Gigabit Ethernet channels (Intel i211AT) I/O: RJ45 serial port, 1 USB 3.0 / USB2.0 external + 2 USB 2.0 internal, eight front panel LEDs, push button Expansion: 3 miniPCI express (1 4GLte/Wifi, 1 Wifi, 1 mSATA), GPIO header, I2C bus, COM3/4 (TXD / RXD / GND) Board size: 6.3 x 6" (160 x 152.4 mm) - same as noah3,noah4 Firmware: AMI Cooling: 77 x 88 mm aluminum heatsink
Documentation	Manual
Howto	How to program BIOS
Manufacturer	Broachlink
Origin	China
